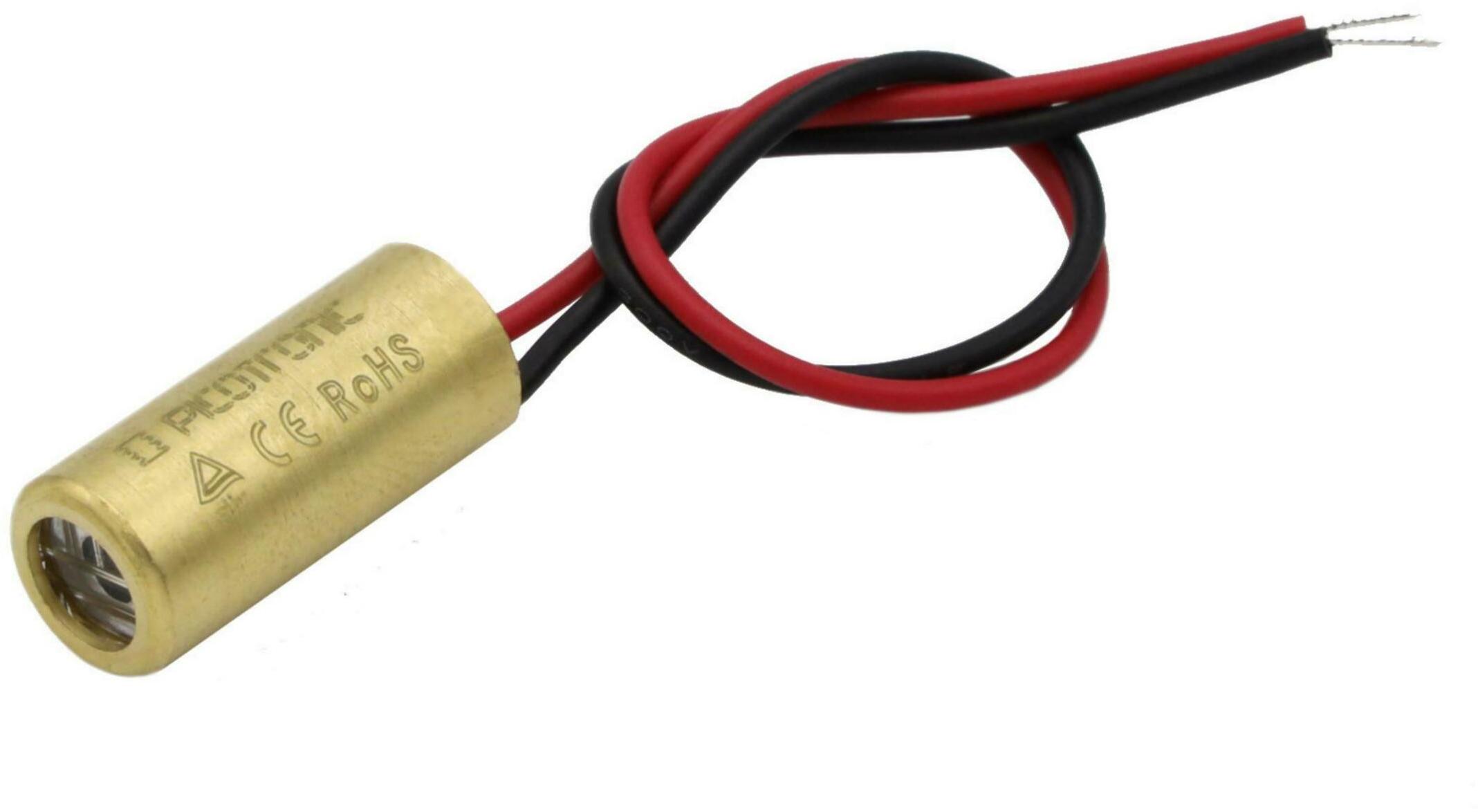

DOE245-635-1-6(10x22)-F280
DOE Laser Module 635nm, red, 1mW, DOE CROSS - PC - 8x1,2mm 10°, 5V DC, Ø10x22mm…
¿Le sorprende que informemos de nuestros precios de manera tan clara? ¿Sólo recibe ofertas individuales de otros proveedores? Nuestro cálculo de costos se basa en la transparencia, la confianza y la igualdad de trato de todos nuestros clientes - ¡y así usted tiene la opción de comparar!
| Unidades: | 10 | 50 | 100 | 250 | 500 | 1000 |
| Descuento: | 10% | 15% | 20% | 25% | 30% | 35% |
| Warranty | 1Jahre |
| Beam Shape | Cross |
| Wavelength | 635nm (rot) |
| Optical Power | 3.5mW |
| Laser Class | 1 |
| Divergence | 1mrad |
| Fan Angle | 45° |
| Line Thickness | <1.2mm@1m |
| Operating Distance | 2m |
| Optics | acryl lense |
| Laser technology | diode |
| Size | |
| Material | Latón |
| Cable length | 100mm |
| Wire type | 26AWG, 0,14mm² |
| Focus | fixed (1000mm) |
| Output Aperture | 6mm |
| Potential of Housing | VDD(+) |
| Lifetime | >3000h |
| Operating Voltage | 2.8 - 5, typ 5V DC |
| Operating Current | 15 - 60, typ 40mA |
| Operating Temperature | -20°C - 40°C |
| Storage Temperature | -40°C - 80°C |
| Weight | 6g |
| Power Supply | Power Supply with stripped/tinned wires, Output: 5V DC, Input: 100-240V AC, 50-60Hz, Output Power: 3W max. |
| Verticality | < ±1° |
| Bracket | LF-BRACKET09 |
![]() | AM1-1203SZ Pedido Nr.: 70114928 DC DC Converter IN=12V OUT=3V 1 Watt (300 mA) 16.72 EUR |
![]() | |
|---|---|
| MDD650-0.9-5(14X33) Pedido Nr.: 70115758 Modulated, isolated Dot lasermodule, red, 650nm, 0.9mW, 5V DC, 14x33mm, class 2, TTl - active high 84.79 EUR |
![]() | |
|---|---|
| DI650-1-3(8x21)-ADJ Pedido Nr.: 70103786 focusable isolated Dot lasermodule, red, 650nm, 1mW, 3V DC, 8x21mm, class 2 31.85 EUR |
![]() | |
|---|---|
| LH532-30-24(20x120)-M12-BR Pedido Nr.: 70130683 isolated Line lasermodule, green, 90°, 532nm, 30mW, 24V DC, 20x120mm, class 2M, with connector M12 without cable 613.36 EUR |
![]() | |
|---|---|
| DOE244-635-5-6(10x22) Pedido Nr.: 70112177 DOE Laser Module 635nm, red, 5mW, DOE 13x13 DOTS - PC - 8x1,2mm 5.3°, 5V DC, Ø10x22mm, Laser Class 2M with DOE-DE-R244 104.96 EUR |
![]() | |
|---|---|
| CB635-2-3(16x45)-PL Pedido Nr.: 70106435 isolated cross lasermodule, red, 90°, 635nm, 2mW, 3V DC, 16x45mm, class 1, with protection lens 71.34 EUR |
![]() | |
|---|---|
| PICO-LPG-740-1100-05 Pedido Nr.: 70190120 Laser protection goggles, full protection, universal fit, comfortable fit, adjustable temples, CE-certified ● Wavelength: 740-780nm, protection level DIR LB5 ● Wavelength: >780-820nm, protection level D LB5 + IR LB6 ● Wavelength: >820-1080nm, protection level D LB5 + IR LB7 Particularly suitable for: Laser INFRARED 780nm, INFRARED 850nm, INFRARED 905nm, and INFRARED 1064nm 128.49 EUR |
![]() | |
|---|---|
| DOE281-DD450-40-3(16x65) Pedido Nr.: 70146912 focusable isolated DOE lasermodule, blue, 450nm, 40mW, 3V DC, 16x65mm, class 3R, incl. DOE281 411.68 EUR |
![]() | |
|---|---|
| EJ658-100-5(20x70)-CON Pedido Nr.: 70129755 Expander Lasermodule red focusable for Illumination and Inspection, 658nm, 5V DC, 100mW, class 3R 310.84 EUR |
