F450-1-5(18x39x11)-USB-FIBER1000

Número de pedido: 70145656

Descripción del producto:
Fiber lasermodule, blue, 450nm, 1mW, 5V DC, 18x39x11mm, class 2M, Light diffusing Fiber, Fiberlength 1m, USB Type A-Connector,

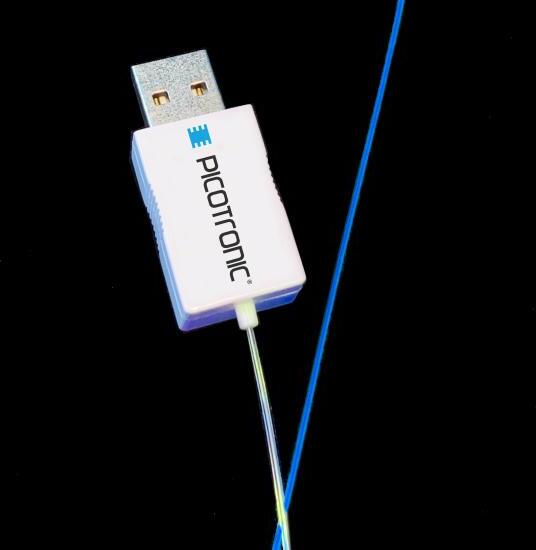

F450-1-5(18x39x11)-USB-FIBER1000 - Produktbild 1
F450-1-5(18x39x11)-USB-FIBER1000 - Hauptbild
F450-1-5(18x39x11)-USB-FIBER1000 - Produktbild 2
F450-1-5(18x39x11)-USB-FIBER1000 - Rendergrafik
Warnlabel 2M
310,84
Todos los precios en Euro más IVA y gastos de envío.

¡No hace falta que ocultemos nuestros precios!

¿Le sorprende que informemos de nuestros precios de manera tan clara? ¿Sólo recibe ofertas individuales de otros proveedores? Nuestro cálculo de costos se basa en la transparencia, la confianza y la igualdad de trato de todos nuestros clientes - ¡y así usted tiene la opción de comparar!

Unidades: 10501002505001000
Descuento: 10%15%20%25%30%35%
  • Características
  • Warranty1Jahre
    Beam ShapeFiber
    Wavelength450nm
    (blau)
    Optical Power1mW
    Laser Class2M
    Operating Distance1m
    OpticsLente de cristal con recubrimiento AR
    Beam ModeTEM00
    Laser technologySingle Mode Diode
    Size39 x 18 x 11mm
    MaterialAluminium/Plastic
    Potential of Housingaislado
    Lifetime>5000h
    Operating Voltage4.5 - 5, typ 5V DC
    Operating Current30 - 100, typ 50mA
    Housing Colornegro
    ConnectorCON-USB-A
    Operating Temperature-10°C - 50°C
    Storage Temperature-20°C - 85°C
    Weight7g
    Fiber includedJa
  • Imágenes y dibujo técnico
  • F450-1-5(18x39x11)-USB-FIBER1000 - Produktbild 1
    F450-1-5(18x39x11)-USB-FIBER1000 - Hauptbild
    F450-1-5(18x39x11)-USB-FIBER1000 - Produktbild 2
    F450-1-5(18x39x11)-USB-FIBER1000 - Rendergrafik
    Warnlabel 2M
  • Accesorios idóneos
  • LFNT-5LFNT-5
    Pedido Nr.: 70114683
    Power Supply with stripped/tinned wires, Output: 5V DC, Input: 100-240V AC, 50-60Hz, Output Power: 3W max.
    22.61 EUR
