DOE281-DD450-40-3(16x65)
Número de pedido: 70146912
Descripción del producto:

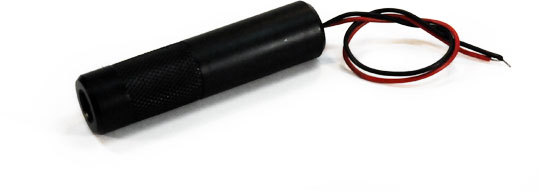

focusable isolated DOE lasermodule, blue, 450nm, 40mW, 3V DC, 16x65mm, class 3R, incl. DOE281
• adjustable focus
• DOE optic can be changed
• compact size
• glas lenses anti reflex coated
• Operating Voltage 3 V DC
Descripción del producto:
focusable isolated DOE lasermodule, blue, 450nm, 40mW, 3V DC, 16x65mm, class 3R, incl. DOE281
• adjustable focus
• DOE optic can be changed
• compact size
• glas lenses anti reflex coated
• Operating Voltage 3 V DC
¡No hace falta que ocultemos nuestros precios!
¿Le sorprende que informemos de nuestros precios de manera tan clara? ¿Sólo recibe ofertas individuales de otros proveedores? Nuestro cálculo de costos se basa en la transparencia, la confianza y la igualdad de trato de todos nuestros clientes - ¡y así usted tiene la opción de comparar!
| Unidades: | 10 | 50 | 100 | 250 | 500 | 1000 |
| Descuento: | 10% | 15% | 20% | 25% | 30% | 35% |
- Características
Warranty 1Jahre Beam Shape DOE Wavelength 450nm
(blau)Optical Power 40mW Laser Class 3R Divergence 0.5mrad Operating Distance 10m Optics Lente de cristal con recubrimiento AR Laser technology diode Size Material aluminium Cable length 130mm Wire type 18AWG, black, 3,6mm Focus ajustable Output Aperture 5mm Potential of Housing aislado Lifetime >10000h Operating Voltage 2.7 - 3.3, typ 3V DC Operating Current 5 - 30, typ 15mA Operating Temperature -20°C - 50°C Storage Temperature -40°C - 80°C Weight 9.5g Power Supply Power Supply with stripped/tinned wires, Output: 3.3V DC, Input: 100-240V AC, 50-60Hz, Output Power: 3.3W max. Stripping of wire 10mm Stripping of cable cover 20mm - Imágenes y dibujo técnico
- Asignación de conectores
Dimensiones:
negro GND Positivo:
rojo 3V DC - Accesorios idóneos
AM1-1203SZ
Pedido Nr.: 70114928
DC DC Converter IN=12V OUT=3V 1 Watt (300 mA)
16.72 EUR- Downloads
