DD650-16-3(14x45)
Número de pedido: 70102055
Descripción del producto:

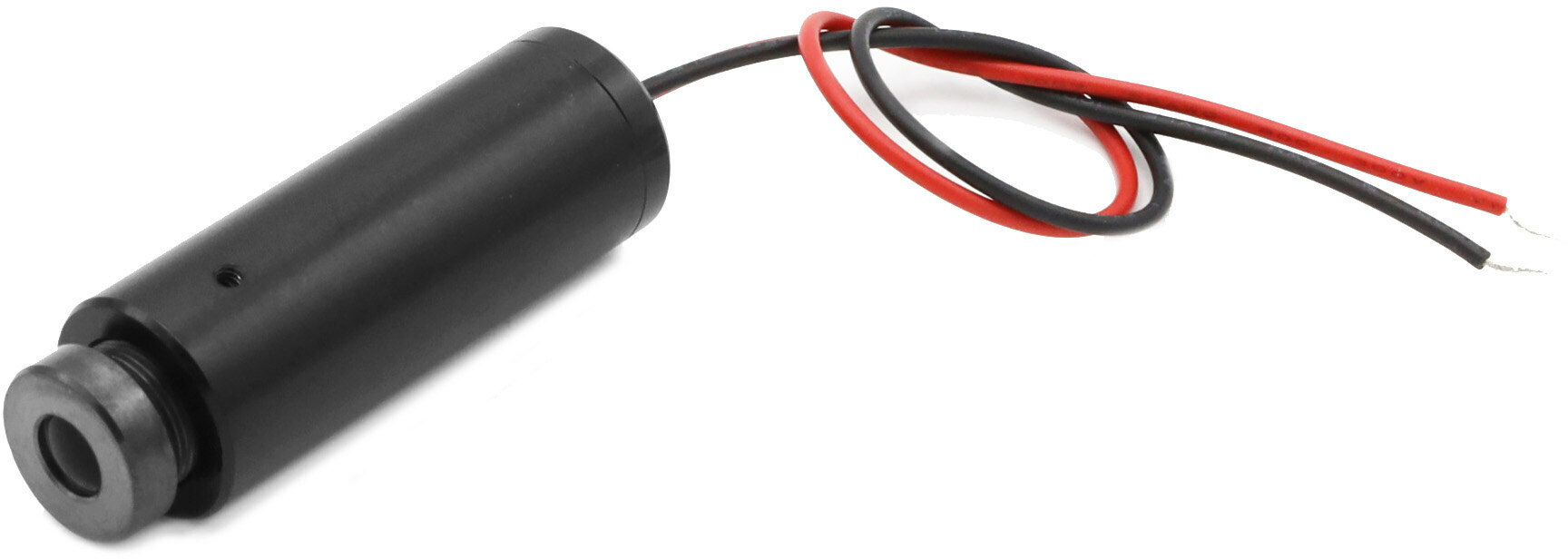

focusable isolated Dot lasermodule, red, 650nm, 16mW, 3V DC, 14x45mm, class 3B
• uniform illumination
• Operating Voltage 3 V DC
• Laser Class 3B
• compact size
• adjustable focus
Descripción del producto:
focusable isolated Dot lasermodule, red, 650nm, 16mW, 3V DC, 14x45mm, class 3B
• uniform illumination
• Operating Voltage 3 V DC
• Laser Class 3B
• compact size
• adjustable focus
.png "DD650-16-3(14x45) - Zeichnung")
.png "DD650-16-3(14x45) - Zeichnung Front")
.png "DD650-16-3(14x45) - Zeichnung isometrisch")
¡No hace falta que ocultemos nuestros precios!
¿Le sorprende que informemos de nuestros precios de manera tan clara? ¿Sólo recibe ofertas individuales de otros proveedores? Nuestro cálculo de costos se basa en la transparencia, la confianza y la igualdad de trato de todos nuestros clientes - ¡y así usted tiene la opción de comparar!
| Unidades: | 10 | 50 | 100 | 250 | 500 | 1000 |
| Descuento: | 10% | 15% | 20% | 25% | 30% | 35% |
- Características
Warranty 1Jahre Beam Shape Punto Wavelength 650nm
(rot)Optical Power 16mW Laser Class 3B Divergence 0.5mrad Size of Laserdot ajustable Operating Distance 50m Optics Lente de cristal con recubrimiento AR Laser technology Single Mode Diode Size Material aluminium Cable length 100mm Wire type Belden, Typ 1007, 26AWG Focus ajustable Output Aperture 5mm Potential of Housing aislado Lifetime >5000h Operating Voltage 2.7 - 3.3, typ 3V DC Operating Current 30 - 90, typ 60mA Housing Color negro Operating Temperature -20°C - 50°C Storage Temperature -40°C - 80°C Weight 16g Power Supply Power Supply with stripped/tinned wires, Output: 3.3V DC, Input: 100-240V AC, 50-60Hz, Output Power: 3.3W max. Stripping of wire 5mm - Imágenes y dibujo técnico
- Asignación de conectores
Dimensiones:
negro GND Positivo:
rojo 3V DC - Accesorios idóneos
AM1-1203SZ
Pedido Nr.: 70114928
DC DC Converter IN=12V OUT=3V 1 Watt (300 mA)
16.72 EUR- Downloads
