MULTI-MOUNT-20(45x75)
Número de pedido: 70112511
Descripción del producto:

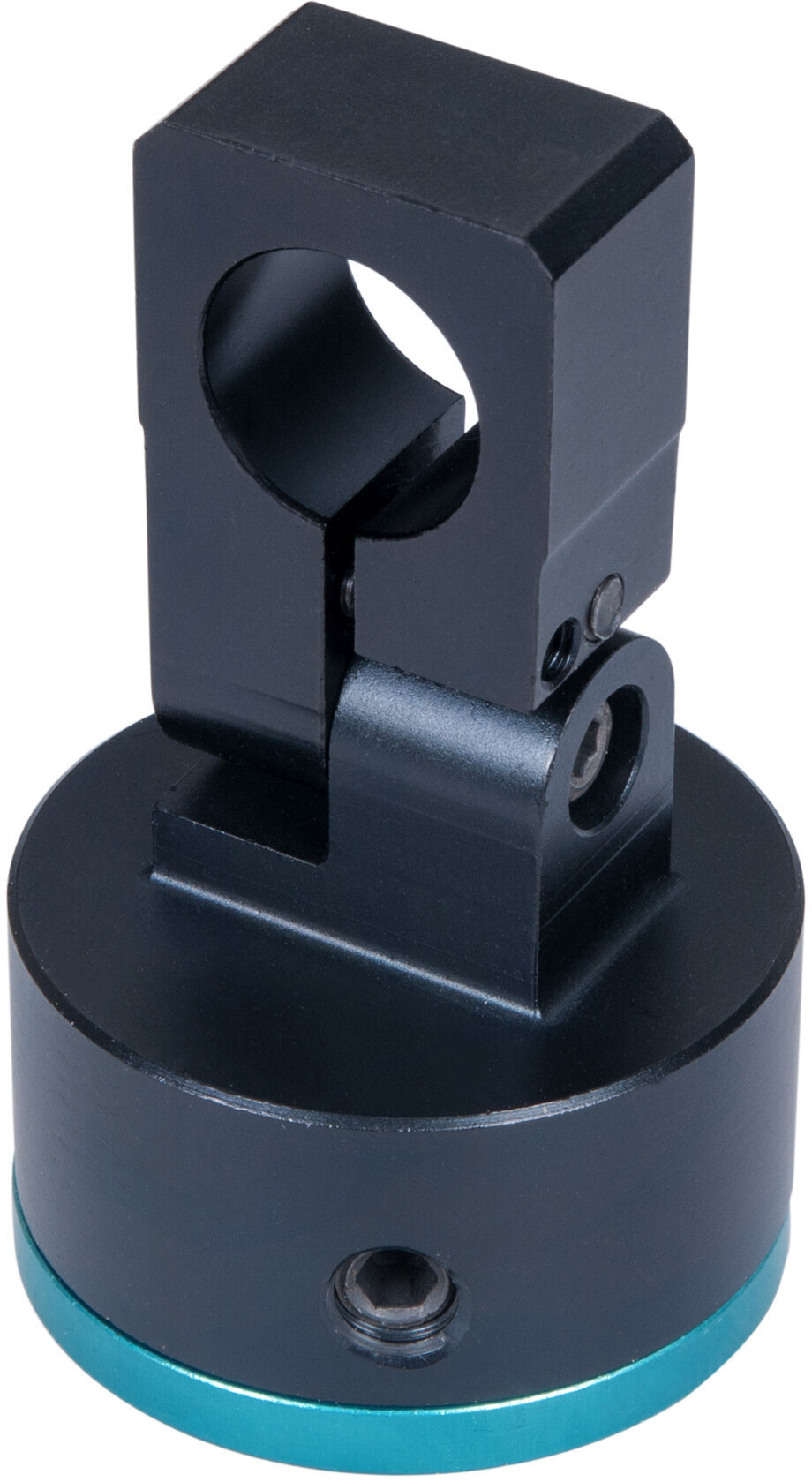

Mount for Lasermodul 20mm, Diameter 45mm, Height 75mm
• anodized aluminium
• very robust
• for industrial applications
Descripción del producto:
Mount for Lasermodul 20mm, Diameter 45mm, Height 75mm
• anodized aluminium
• very robust
• for industrial applications
¡No hace falta que ocultemos nuestros precios!
¿Le sorprende que informemos de nuestros precios de manera tan clara? ¿Sólo recibe ofertas individuales de otros proveedores? Nuestro cálculo de costos se basa en la transparencia, la confianza y la igualdad de trato de todos nuestros clientes - ¡y así usted tiene la opción de comparar!
| Unidades: | 10 | 50 | 100 | 250 | 500 | 1000 |
| Descuento: | 10% | 15% | 20% | 25% | 30% | 35% |
- Características

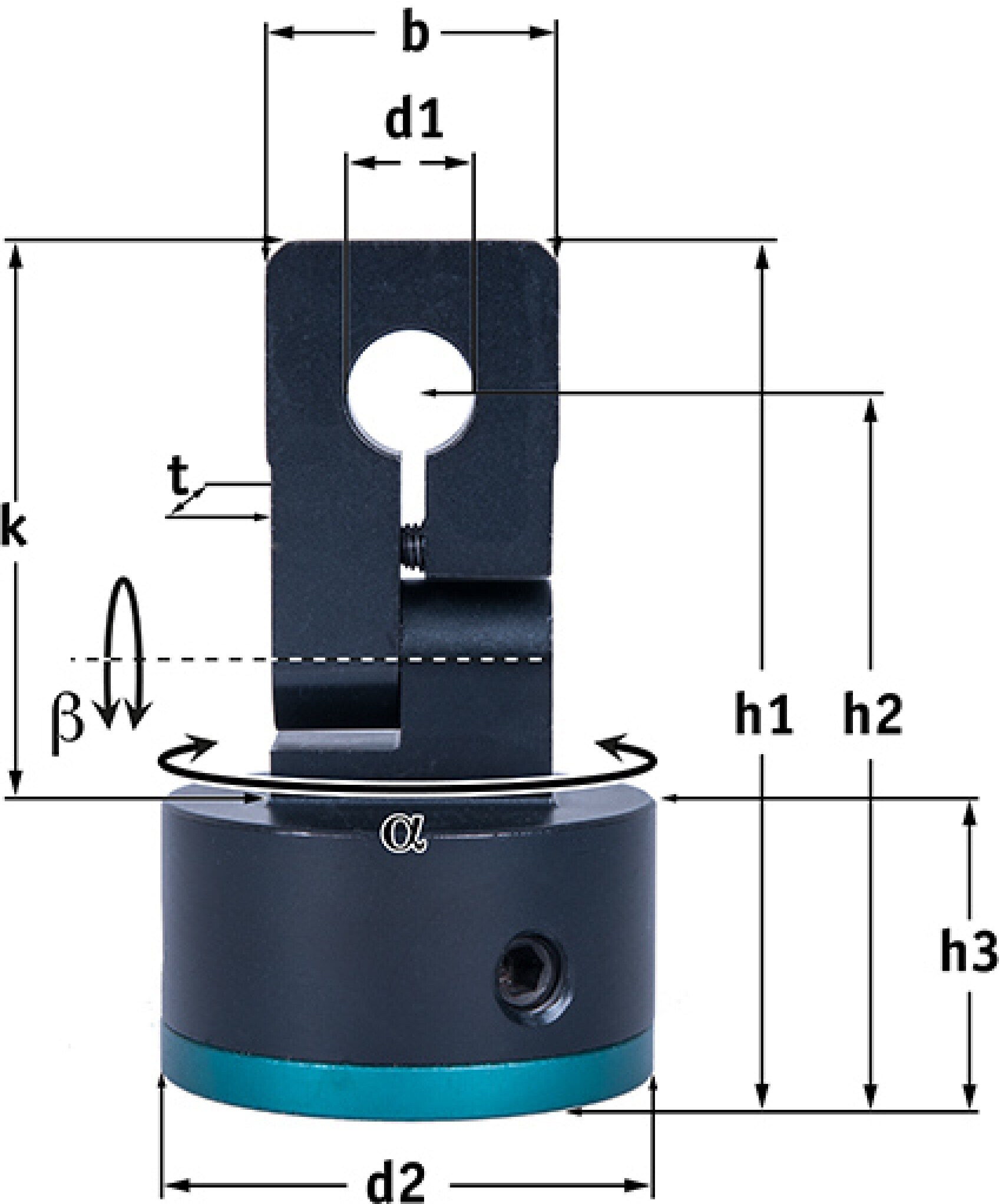

Warranty 1Jahre Size Material aluminium Housing Color negro Operating Temperature -20°C - 50°C Storage Temperature -50°C - 70°C Weight 132.5g Total Height (h1) 75mm Height to Laseraxis (h2) 60mm Height of Base (h3) 25mm Mount Diameter (d1) Ø20mm Diameter of Base (d2) Ø45mm Width of Mount (b) 26mm Height of Mount (g) 50mm Height of Mount Head (k) 50mm Depth of Mount (t) 15mm Angle of Rotation Alpha (α) 360° Angle of Rotation Beta (β) ±90° - Imágenes y dibujo técnico
