LG650-3-5(10x21)-F500

Order number: 70103335

Product description:
Isolated Line lasermodule, red, 90°, 650nm, 3mW, 5V DC, 10x21mm, class 1

• Operating Voltage 5 V DC
• Laser Class 1
• fixed focus
• uniform line thickness
• glas lenses anti reflex coated

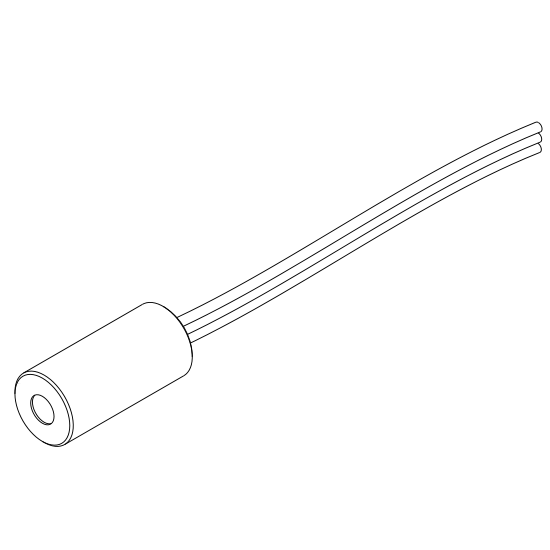

LG650-3-5(10x21)-F500 - Zeichnung isometrisch

53,70
All prices in euros plus VAT at current rate and shipping costs.

We don't need to hide our prices!

Are you surprised that we communicate our prices so openly? Other suppliers only give you individual quotations? Our costing is also based on transparency, trust and treating all customers equally and this gives you the ability to compare!

Pcs:	10	50	100	250	500	1000
Discount:	10%	15%	20%	25%	30%	35%

Specification

Warranty	1Jahre
Beam Shape	Line
Wavelength	650nm (rot)
Optical Power	3mW
Laser Class	1
Divergence	0.8mrad
Fan Angle	90°
Line Thickness	<0.5mm@0.5m
Operating Distance	0.5m
Optics	Glass lens AR coated
Laser technology	Single Mode Diode
Size
Material	Bronze
Cable length	100mm
Focus	fixed (500mm)
Output Aperture	5mm
Potential of Housing	insulated
Lifetime	>5000h
Operating Voltage	4.5 - 5.5, typ 5V DC
Operating Current	15 - 40, typ 25mA
Housing Color	black
Operating Temperature	-20°C - 50°C
Storage Temperature	-40°C - 80°C
Weight	7g
Power Supply	Power Supply with stripped/tinned wires, Output: 5V DC, Input: 100-240V AC, 50-60Hz, Output Power: 3W max.
Stripping of wire	5mm

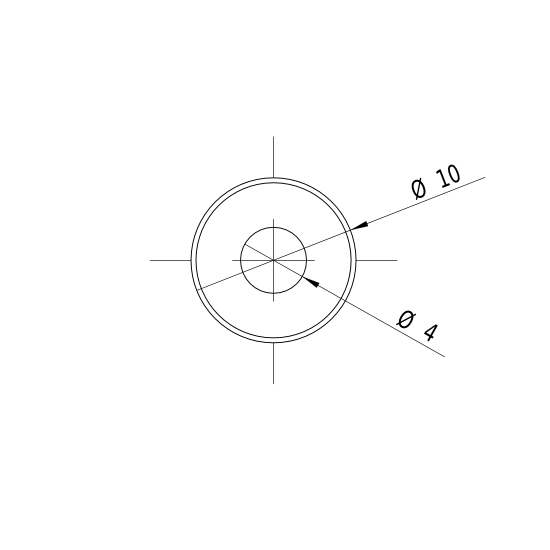

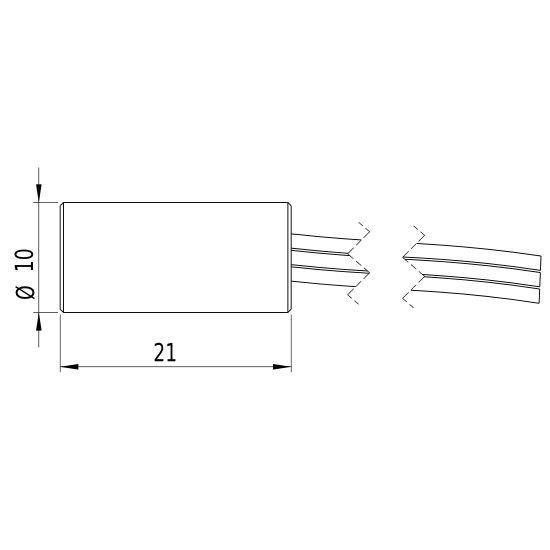

Illustration and technical drawing
Connector pin assignment
Ground: blue GND
Positive: red 5V DC
Matching accessories
LFNT-5
Order no.: 70114683
Power Supply with stripped/tinned wires, Output: 5V DC, Input: 100-240V AC, 50-60Hz, Output Power: 3W max.
22.61 EUR
