DC650-0.4-3(8x25)

Order number: 70114843

Product description:
focusable isolated Dot lasermodule, red, 650nm, 0.4mW, 3V DC, 8x25mm, class 1

• Operating Voltage 3V DC
• Laser Class 1
• Low power consumption
• Compact size
• Adjustable focus

Specification

Wavelength 650nm
(red)
Beam Shape Dot
Optical Power 0.4mW
Laser Class 1
Divergence 0.4mrad
Size of Laserdot adjustable
Operating Distance 5m
Optics Glass lens AR coated
Laser technology Single Mode Diode
Size Ø8mm 25mm
Material Aluminium
Cable length 100mm
Wire type 26AWG, 0,14mm²
Focus adjustable
Output Aperture 3.5mm
Potential of Housing insulated
Lifetime >5000h
Operating Voltage 2.7 - 3.3, typ 3V DC
Operating Current 10 - 30, typ 18mA
Housing Color black
Operating Temperature -20°C - 50°C
Storage Temperature -40°C - 80°C
Weight 3.5g
customs tarif number 90132000000
Stripping of wire 5mm

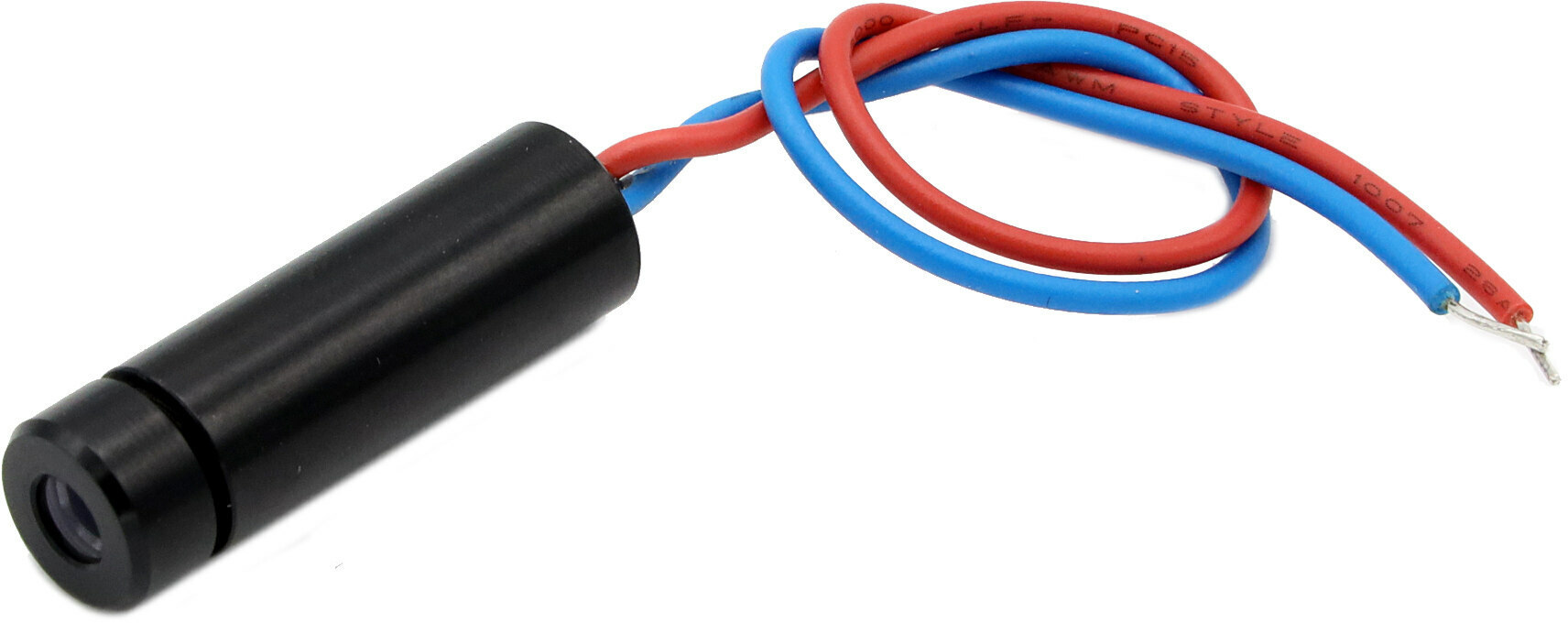

Illustration and technical drawing

Connector pin assignment
Ground:Cable color Ground: blueblueGND
Positive:Cable color Positive: redred3V DC
20.64 EURAll prices in euros plus VAT at current rate and shipping costs.

We don't need to hide our prices!

Are you surprised that we communicate our prices so openly? Other suppliers only give you individual quotations? Our costing is also based on transparency, trust and treating all customers equally and this gives you the ability to compare!

Pcs: 10501002505001000
10%15%20%25%30%35%

Matching accessories

MULTI-MOUNT-08(45x75)
Order no.: 70112481
Mount for Lasermodul 8mm, Diameter 45mm, Height 75mm
48.07 EUR
BALLHEAD-MOUNT-08(25x66)
Order no.: 70117844
Bracket for lasermodules D=8mm, 1/4'' UNC thread in base plate for mounting
48.07 EUR
LFNT-3
Order no.: 70104547
Power Supply with stripped/tinned wires, Output: 3V DC, Input: 100-240V AC, 50-60Hz, Output Power: 3W max.
16.28 EUR
AM1-1203SZ
Order no.: 70114928
DC DC Converter IN=12V OUT=3V 1 Watt (300 mA)
11.23 EUR
LABEL-DIN-CLASS1-DE
Order no.: 70110821
Safety Label german DIN EN 60825, Class 1, 38x23mm, yellow, PET
0.44 EUR
LABEL-DIN-CLASS1-EN
Order no.: 70112696
Safety Label english DIN EN 60825, Class 1, 38x23mm, yellow, PET
0.44 EUR
