LD635-3-24(14x45)45DEG-F100

Order number: 70115932

Product description:
isolated Line lasermodule, red, 45°, 635nm, 3mW, 24V DC, 14x45mm, cable 3m, focus 100mm, class 1

• Operating Voltage 24V DC
• Laser Class 1
• Fan angle 45°
• Compact size
• Uniform line thickness

Specification

Wavelength 635nm
(red)
Beam Shape Line
Optical Power 3mW
Laser Class 1
Divergence 0.5mrad

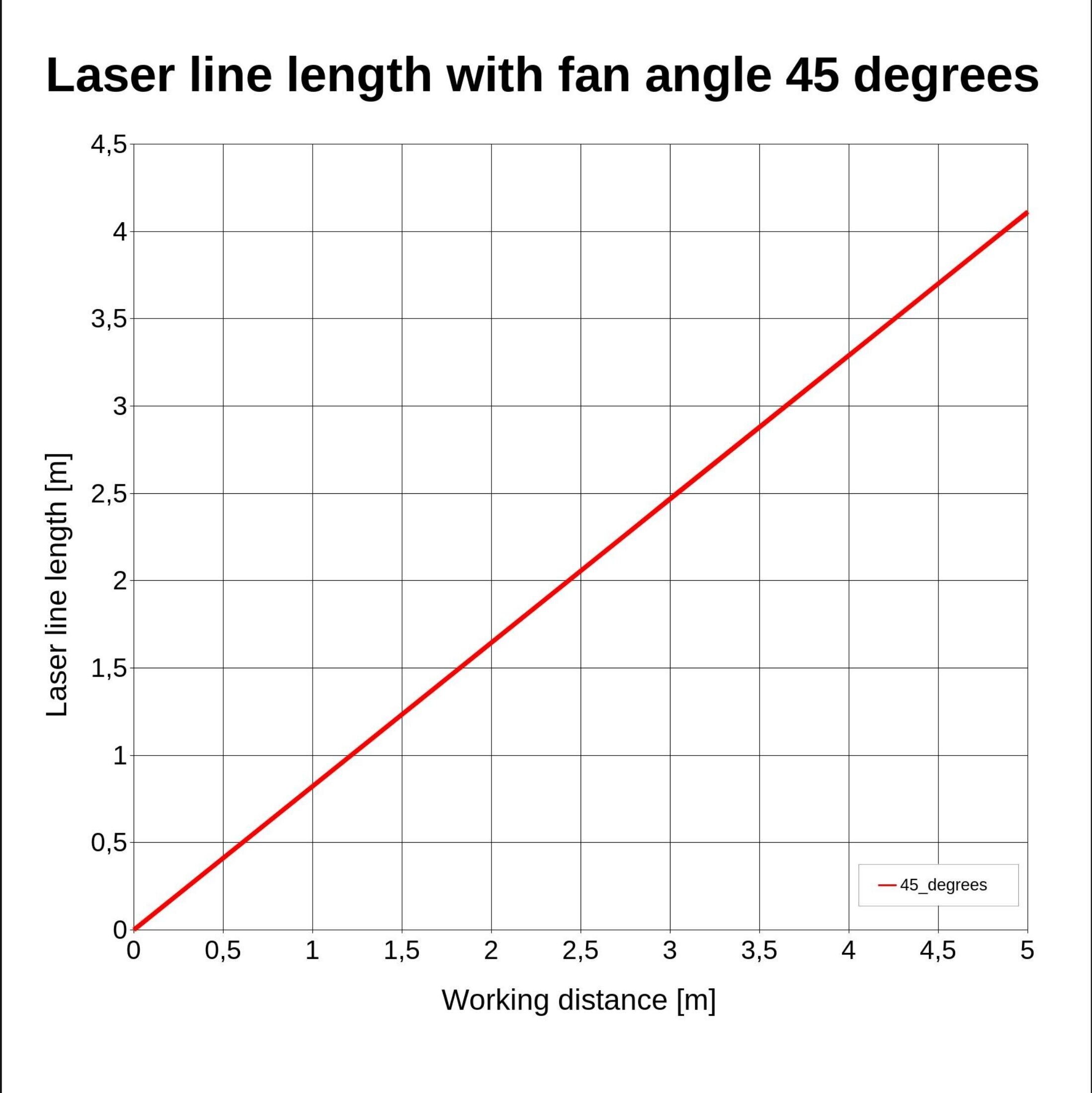

Fan Angle 45°
Line Thickness <0.7mm@0.1
Operating Distance 0.1m
Optics Glass lens AR coated
Laser technology Single Mode Diode
Size Ø14mm 45mm
Material Aluminium
Cable length 3000mm
Wire type 22AWG, black, 3,6mm
Focus fixed
Output Aperture 5.5mm
Potential of Housing insulated
Lifetime >5000h
Operating Voltage 21.6 - 26.4, typ 24V DC
Operating Current 5 - 40, typ 21mA
Housing Color black
Operating Temperature -20°C - 50°C
Storage Temperature -40°C - 80°C
Weight 80g
customs tarif number 90132000000
Stripping of wire 5mm
Stripping of cable cover 50mm

Illustration and technical drawing

Connector pin assignment
Ground:Cable color Ground: blackblackGND
Positive:Cable color Positive: whitewhite24V DC
65.91 EURAll prices in euros plus VAT at current rate and shipping costs.

We don't need to hide our prices!

Are you surprised that we communicate our prices so openly? Other suppliers only give you individual quotations? Our costing is also based on transparency, trust and treating all customers equally and this gives you the ability to compare!

Pcs: 10501002505001000
10%15%20%25%30%35%
