BALLHEAD-MOUNT-12(25x70)

Order number: 70117875

Product description:

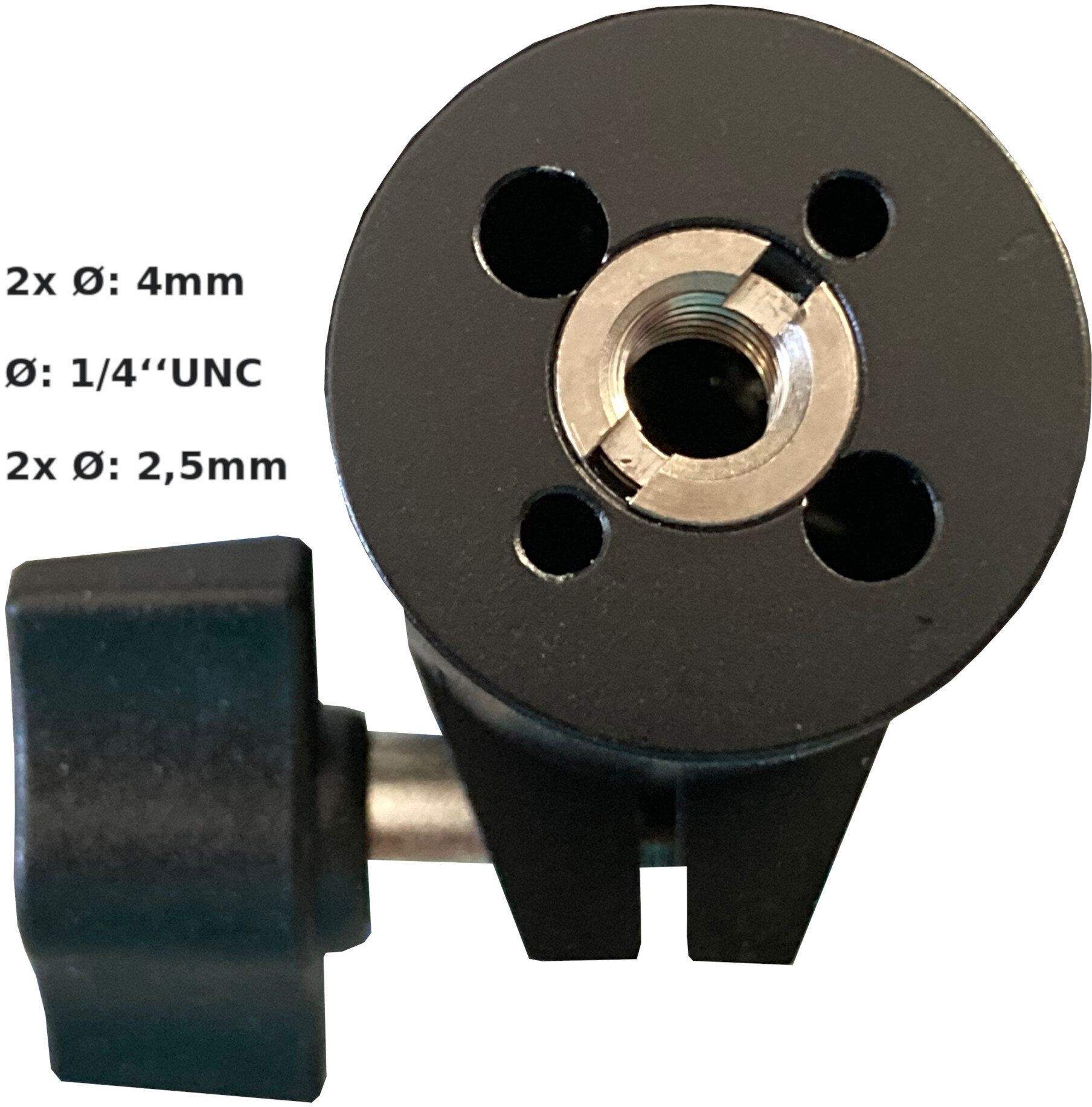

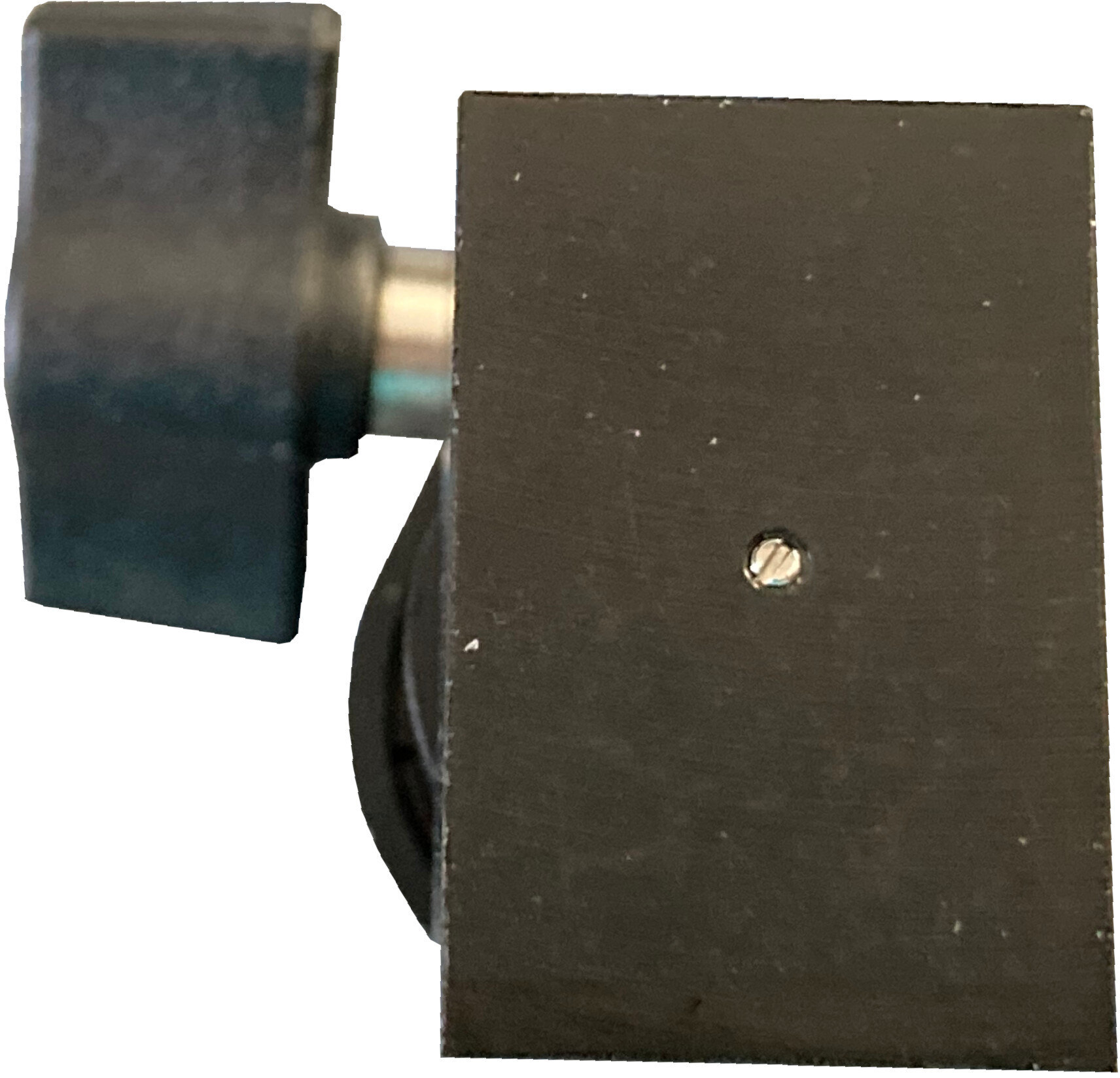

Bracket for lasermodules D=12mm, 1/4'' UNC thread in base plate for mounting

Specification

Material Aluminium
Housing Color black
Operating Temperature -20°C - 40°C
Storage Temperature -50°C - 50°C
Weight 84g
Total Height (h1) 70mm
Height to Laseraxis (h2) 62mm
Height of Base (h3) 34.5mm
Mount Diameter (d1) Ø12mm
Diameter of Base (d2) Ø25mm
Width of Mount (b) 18mm
Height of Mount (g) 19mm
Height of Mount Head (k) 35.5mm
Depth of Mount (t) 27mm
Angle of Rotation Alpha (α) 360°
Angle of Rotation Beta (β) ±40°
Angle of Rotation Gamma (γ) ±40°
customs tarif number 90139090800
