E650-2-3-8(16x60)

Order number: 70102451

Product description:
Dot lasermodule, red, 650nm, 2mW, 3V DC, 16x60mm, class 1

Specification

Wavelength 650nm
(red)
Beam Shape Expanders
Optical Power 2mW
Laser Class 1
Operating Distance 10m
Optics Glass lens AR coated
Laser technology Diode
Size Ø16mm 60mm
Material Aluminium
Cable length 100mm
Output Aperture 8mm
Lifetime >5000h
Operating Voltage 3V DC
Operating Current 50mA
Operating Temperature -20°C - 50°C
Storage Temperature -40°C - 80°C
Weight 43g
customs tarif number 90132000000

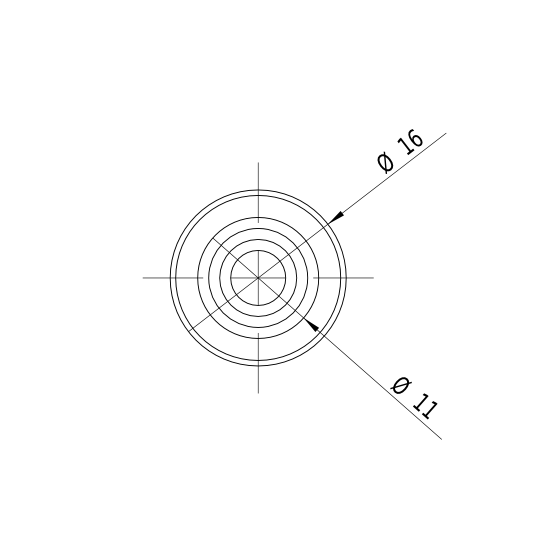

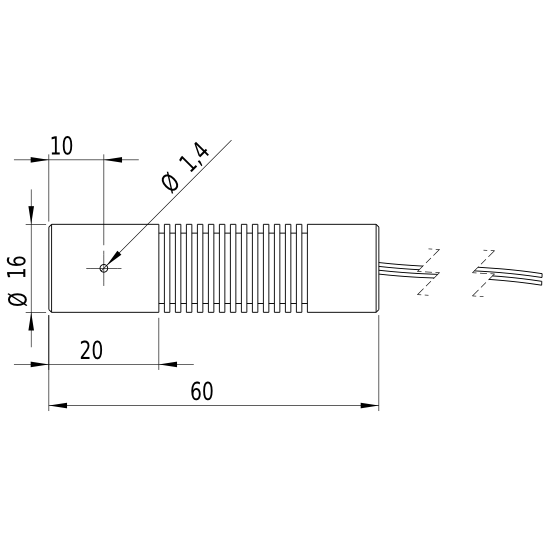

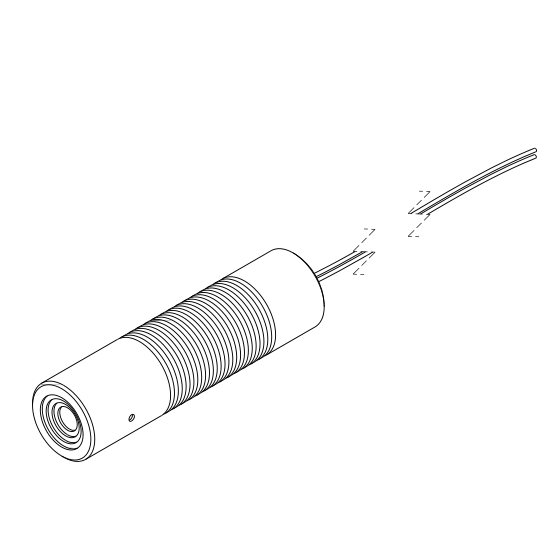

Illustration and technical drawing

126.08 EURAll prices in euros plus VAT at current rate and shipping costs.

We don't need to hide our prices!

Are you surprised that we communicate our prices so openly? Other suppliers only give you individual quotations? Our costing is also based on transparency, trust and treating all customers equally and this gives you the ability to compare!

Pcs: 10501002505001000
10%15%20%25%30%35%
