LC450-30-24-F(14x60)

Order number: 70121575

Product description:
focusable isolated Line lasermodule, blue, 450nm, 30mW, 24V DC, 14x60mm, class 2M

• Adjustable focus
• Operating Voltage 24 V DC
• Adjustable focus
• Small fan angle
• Image processing
• 450nm bright blue

Specification

Warranty 1Jahre
Beam Shape Line
Wavelength 450nm
(blau)
Optical Power 30mW
Laser Class 2M
Divergence 0.4mrad
Fan Angle 90°
Line Thickness adjustable
Operating Distance 6m
Optics Glass lens AR coated
Laser technology Single Mode Diode
Size Ø14mm 60mm
Material Aluminium
Cable length 3000mm
Wire type 18AWG, black, 3,6mm
Focus adjustable
Output Aperture 3.5mm
Potential of Housing insulated
Lifetime >5000h
Operating Voltage 21.6 - 26.4, typ 24V DC
Operating Current 20 - 65, typ 37mA
Housing Color black
Operating Temperature 10°C - 60°C
Storage Temperature -40°C - 80°C
Weight 16.5g
customs tarif number 90132000000
Stripping of wire 5mm
Stripping of cable cover 50mm

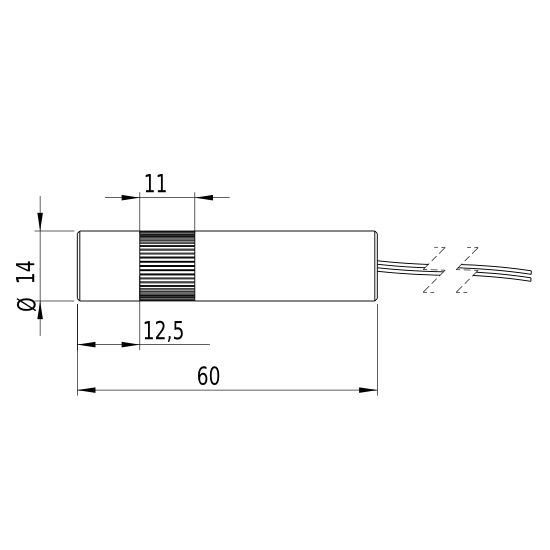

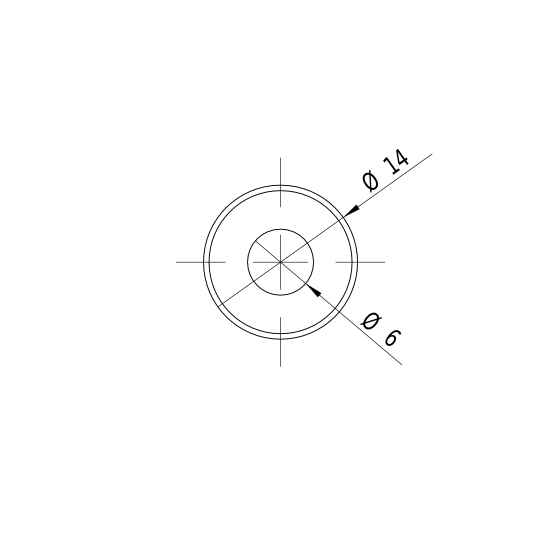

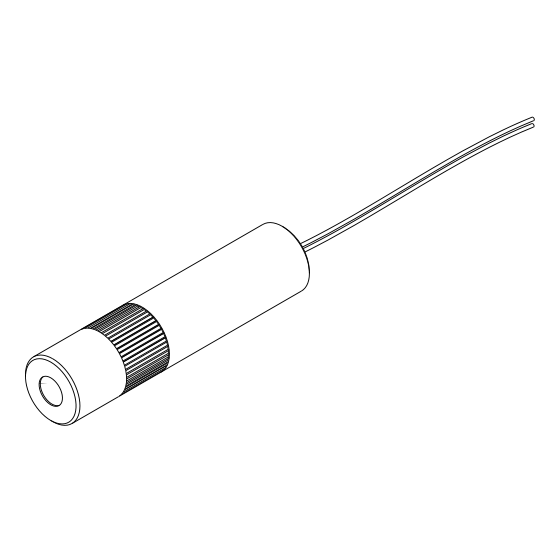

Illustration and technical drawing

Connector pin assignment
Ground:Cable color Ground: blackblackGND
Positive:Cable color Positive: whitewhite24V DC
292.65 EURAll prices in euros plus VAT at current rate and shipping costs.

We don't need to hide our prices!

Are you surprised that we communicate our prices so openly? Other suppliers only give you individual quotations? Our costing is also based on transparency, trust and treating all customers equally and this gives you the ability to compare!

Pcs: 10501002505001000
10%15%20%25%30%35%
