LH650-5-3(15x68)90

Order number: 70124859

Product description:
Line Pointer 650nm, 5mW, 3V DC, 15x68mm, 90°, class 1,

• Laser Class 1
• with battery
• with Pushbutton (no restfunction)
•

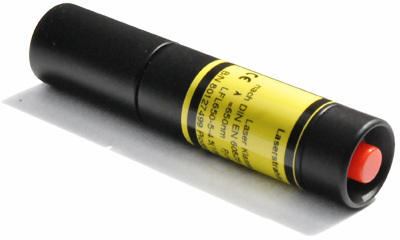

LH650-5-3(15x68)90 - Produktbild 1
LH650-5-3(15x68)90 - Hauptbild
LH650-5-3(15x68)90 - Produktbild 2
LH650-5-3(15x68)90 - Rendergrafik
LH650-5-3(15x68)90 - Zeichnung
LH650-5-3(15x68)90 - Zeichnung Front
LH650-5-3(15x68)90 - Zeichnung isometrisch
Warnlabel 1
58,74
All prices in euros plus VAT at current rate and shipping costs.

We don't need to hide our prices!

Are you surprised that we communicate our prices so openly? Other suppliers only give you individual quotations? Our costing is also based on transparency, trust and treating all customers equally and this gives you the ability to compare!

Pcs: 10501002505001000
Discount: 10%15%20%25%30%35%
  • Specification
  • Warranty1Jahre
    Beam ShapeLine
    Wavelength650nm
    (rot)
    Optical Power5mW
    Laser Class1
    Divergence1mrad
    Fan Angle90°
    Line Thickness<2mm@2m
    Operating Distance2m
    Opticsacryl lense
    Laser technologySingle Mode Diode
    Protection LensJa
    Size
    Materialaluminium
    Focusfixed (2000mm)
    Output Aperture6mm
    Potential of HousingVDD(+)
    Lifetime>3000h
    Operating Voltage2.8 - 3.3, typ 3V DC
    Operating Current20mA
    BatteryLR44/AG13 alkaline battery, 1.5V
    Battery count2
    Operating Temperature-20°C - 50°C
    Storage Temperature-40°C - 80°C
    Weight25g
    Delivery ContentIm Lieferumfang sind zwei Batterien vom Typ LR44 enthalten.
    • Illustration and technical drawing
    • LH650-5-3(15x68)90 - Produktbild 1
      LH650-5-3(15x68)90 - Hauptbild
      LH650-5-3(15x68)90 - Produktbild 2
      LH650-5-3(15x68)90 - Rendergrafik
      LH650-5-3(15x68)90 - Zeichnung
      LH650-5-3(15x68)90 - Zeichnung Front
      LH650-5-3(15x68)90 - Zeichnung isometrisch
      Warnlabel 1
    • Matching accessories
    • LABEL-DIN-CLASS1-DELABEL-DIN-CLASS1-DE
      Order no.: 70110821
      Safety Label german DIN EN 60825, Class 1, 38x23mm, yellow, PET
      0.60 EUR
