MULTI-MOUNT-13(45x75)-MAGNETIC

Order number: 70144185

Product description:
Mount for Lasermodul 13mm, Diameter 45mm, Height 75mm, Magnetic Mount

• anodized aluminium
• very robust
• for industrial applications
• magnetic

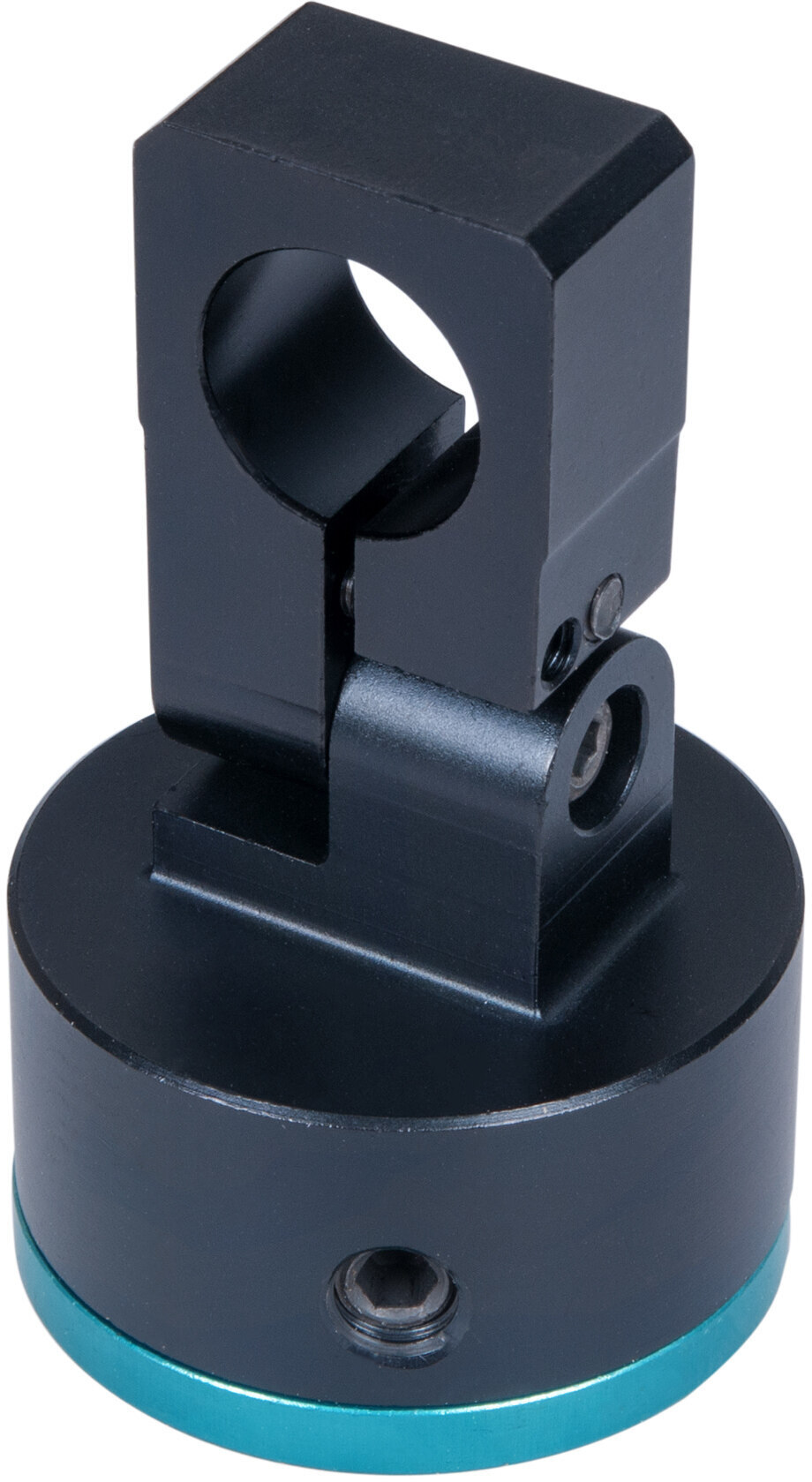

MULTI-MOUNT-13(45x75)-MAGNETIC - Hauptbild

MULTI-MOUNT-13(45x75)-MAGNETIC - Produktbild 2

MULTI-MOUNT-13(45x75)-MAGNETIC - Produktbild 3

MULTI-MOUNT-13(45x75)-MAGNETIC - Produktbild 4

MULTI-MOUNT-13(45x75)-MAGNETIC - Rendergrafik

72,18
All prices in euros plus VAT at current rate and shipping costs.

We don't need to hide our prices!

Are you surprised that we communicate our prices so openly? Other suppliers only give you individual quotations? Our costing is also based on transparency, trust and treating all customers equally and this gives you the ability to compare!

Pcs:	10	50	100	250	500	1000
Discount:	10%	15%	20%	25%	30%	35%

Specification

Size
Material	aluminium
Operating Voltage	max 0V DC
Housing Color	black
Operating Temperature	-20°C - 50°C
Storage Temperature	-50°C - 70°C
Weight	141g
Total Height (h1)	75mm
Height to Laseraxis (h2)	60mm
Height of Base (h3)	25mm
Mount Diameter (d1)	Ø13mm
Diameter of Base (d2)	Ø45mm
Width of Mount (b)	26mm
Height of Mount (g)	50mm
Height of Mount Head (k)	50mm
Depth of Mount (t)	15mm
Angle of Rotation Alpha (α)	360°
Angle of Rotation Beta (β)	±90°

Illustration and technical drawing
Downloads
Data sheet Fax order form
