LB405-50-24(19x88)60DEG-PWL-TTL

Order number: 70150223

Product description:

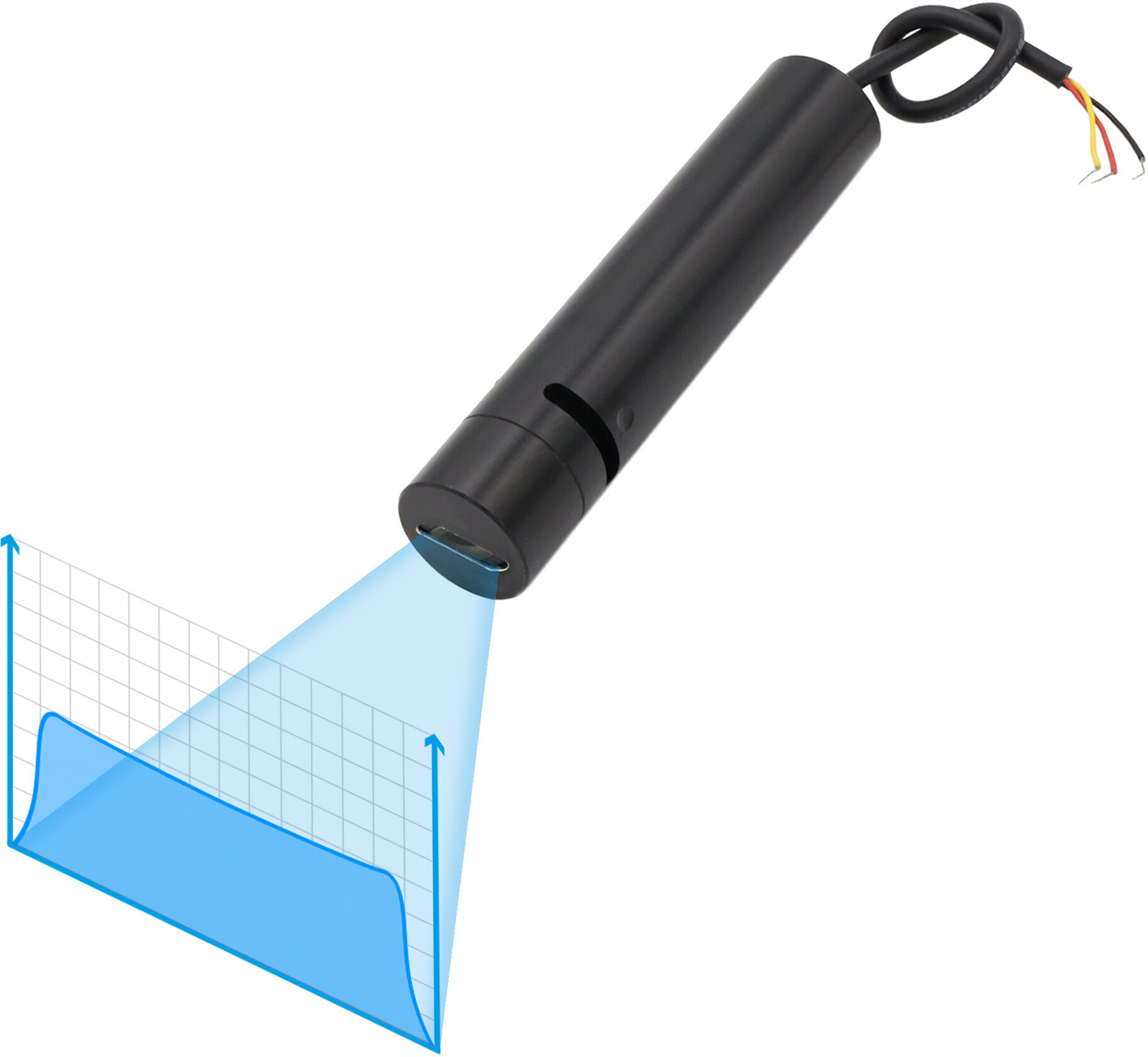

adjustable line laser, blue, 60°, 405nm, 50mW, 5V DC, 19x88mm, class 3B, constant energy distribution, Powell Linse, TTL 0-5V, compatible with Osela® etc.
LB405-50-24(19x88)60DEG-PWL-TTL - Produktbild 1
LB405-50-24(19x88)60DEG-PWL-TTL - Hauptbild
LB405-50-24(19x88)60DEG-PWL-TTL - Produktbild 2
LB405-50-24(19x88)60DEG-PWL-TTL - Produktbild 3
Warnlabel 3B
1.361,26
All prices in euros plus VAT at current rate and shipping costs.

We don't need to hide our prices!

Are you surprised that we communicate our prices so openly? Other suppliers only give you individual quotations? Our costing is also based on transparency, trust and treating all customers equally and this gives you the ability to compare!

Pcs: 10501002505001000
Discount: 10%15%20%25%30%35%
  • Specification
  • Warranty1Jahre
    Beam ShapeLine
    Wavelength405nm
    (blau)
    Optical Power50mW
    Laser Class3B
    Divergence0.3mrad
    Fan Angle60°
    Line Thicknessadjustable
    Operating Distance0.5m
    OpticsPowell Lens
    Laser technologySingle Mode Diode
    Opt. Power Stability at const. Temp.<3%
    Protection LensJa
    Axial Divergence±0.2°
    Size
    Materialaluminium
    Cable length500mm
    Wire typeBelden 9533
    Focusadjustable
    Output Aperture6.8mm
    Potential of Housinginsulated
    Max. Mod. Frequency10kHz
    Lifetime>10000h
    Operating Voltage12 - 24, typ 24V DC
    Operating Current15 - 75, typ 35mA
    Housing Colorblack
    Operating Temperature-10°C - 50°C
    Storage Temperature-40°C - 80°C
    Weight20g
    Power SupplyPower Supply, Output: 24V DC, Input: 100-240V AC, 50-60Hz, Output Power: 24W max.
  • Illustration and technical drawing
  • LB405-50-24(19x88)60DEG-PWL-TTL - Produktbild 1
    LB405-50-24(19x88)60DEG-PWL-TTL - Hauptbild
    LB405-50-24(19x88)60DEG-PWL-TTL - Produktbild 2
    LB405-50-24(19x88)60DEG-PWL-TTL - Produktbild 3
    Warnlabel 3B
    Connector pin assignment
    Ground:Cable color Ground: blackblackGND
    Positive:Cable color Positive: redred24V DC
    Modulation:Cable color Modulate: yellowyellow10kHz
  • Matching accessories
  • NT-TT-12NT-TT-12
    Order no.: 70122992
    Power Supply with connector, Output: 12V DC, Input: 90-264V AC, 50-60Hz, Output Power: 30W max. with DC plug 2,5x5,5x9,5mm. DC Cord 1800mm
    50.34 EUR
