PICOMARK-650-1000-45DEG

Order number: 70159271

Product description:
collimated isolated Line lasermodule, red, 45°, 650nm, 1000mW, 230V, 80x80mm, class 3B
PICOMARK-650-1000-45DEG - Produktbild 1
PICOMARK-650-1000-45DEG - Hauptbild
PICOMARK-650-1000-45DEG - Produktbild 2
PICOMARK-650-1000-45DEG - Produktbild 3
PICOMARK-650-1000-45DEG - Produktbild 4
PICOMARK-650-1000-45DEG - Produktbild 5
Warnlabel 3B
1.109,16
All prices in euros plus VAT at current rate and shipping costs.

We don't need to hide our prices!

Are you surprised that we communicate our prices so openly? Other suppliers only give you individual quotations? Our costing is also based on transparency, trust and treating all customers equally and this gives you the ability to compare!

Pcs: 10501002505001000
Discount: 10%15%20%25%30%35%
  • Specification
  • Warranty1Jahre
    Beam ShapeLine
    Wavelength650nm
    (rot)
    Optical Power600mW
    Laser Class3B
    Divergence1mrad

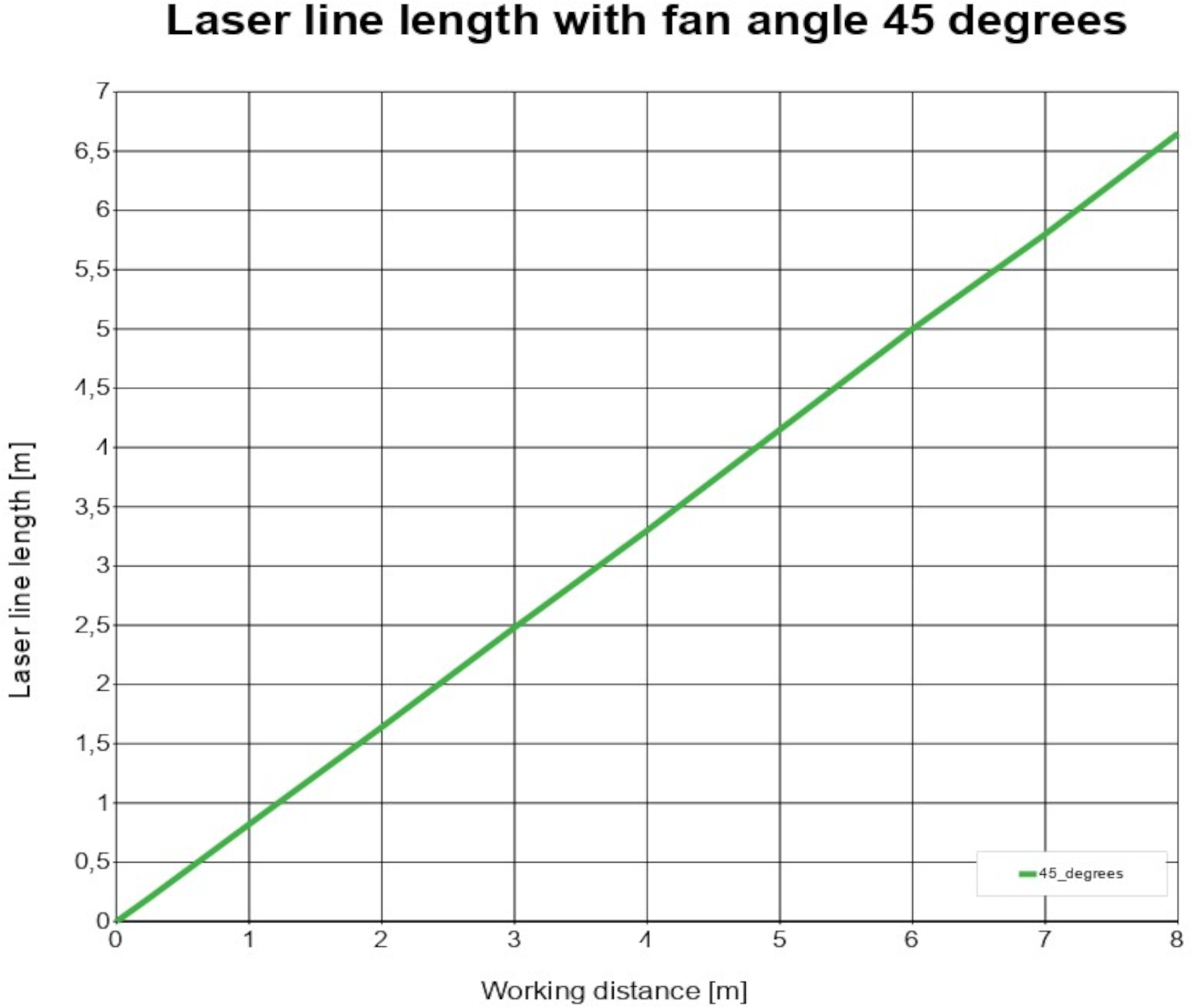

    Fan Angle45°
    Line Thickness30mm-80mm
    Operating Distance8m
    OpticsGlass lens AR coated
    Size
    Materialaluminium
    Cable length5000mm
    Wire type22AWG, black, 3,6mm
    Focuscollimated
    Lifetime>10000h
    Operating Voltage230V AC
    Operating Current100 - 400, typ 300mA
    Housing Colorblack
    Operating Temperature-20°C - 50°C
    Storage Temperature-40°C - 80°C
    Weight200g
    Protection ClassIPIP 67
  • Illustration and technical drawing
  • PICOMARK-650-1000-45DEG - Produktbild 1
    PICOMARK-650-1000-45DEG - Hauptbild
    PICOMARK-650-1000-45DEG - Produktbild 2
    PICOMARK-650-1000-45DEG - Produktbild 3
    PICOMARK-650-1000-45DEG - Produktbild 4
    PICOMARK-650-1000-45DEG - Produktbild 5
    Warnlabel 3B
    Connector pin assignment
    Ground:Cable color Ground: blackblackGND
    Positive:Cable color Positive: redred230V DC
  • Matching accessories
  • NF-S-419424-1-16ANF-S-419424-1-16A
    Order no.: 70115031
    Power Line Filter 16A 250V AC, 50/60Hz to protect Lasermodules from voltage peaks
    144.45 EUR
