AMDA520-3-5(11.5X55)

Order number: 70182941

Product description:
adjustable isolated Dot lasermodule, green, 520nm, 5mW, 3DC, 12x55mm, class 3R, internal modulation 1kHz, with connector for power supply

• isolated housing
• Laser Class 3R
• compact size
• Anti-reflex coating

210,00
All prices in euros plus VAT at current rate and shipping costs.

We don't need to hide our prices!

Are you surprised that we communicate our prices so openly? Other suppliers only give you individual quotations? Our costing is also based on transparency, trust and treating all customers equally and this gives you the ability to compare!

Pcs:	10	50	100	250	500	1000
Discount:	10%	15%	20%	25%	30%	35%

Specification

Warranty	1Jahre
Beam Shape	Dot
Wavelength	520nm (grün)
Optical Power	3mW
Laser Class	3R
Divergence	0.1mrad
Size of Laserdot	<￠4.0mm (@5.0m)
Operating Distance	50m
Optics	Glass lens AR coated
Size
Material	aluminium
Cable length	200mm
Wire type	26AWG, 0,14mm²
Focus	collimated
Output Aperture	4mm
Lifetime	>10000h
Operating Voltage	4.5 - 5.5, typ 5V DC
Operating Current	100 - 160, typ 130mA
Housing Color	black
Operating Temperature	-20°C - 60°C
Storage Temperature	-40°C - 85°C
Weight	13g
Power Supply	Power Supply with stripped/tinned wires, Output: 5V DC, Input: 100-240V AC, 50-60Hz, Output Power: 3W max.
Stripping of wire	5mm

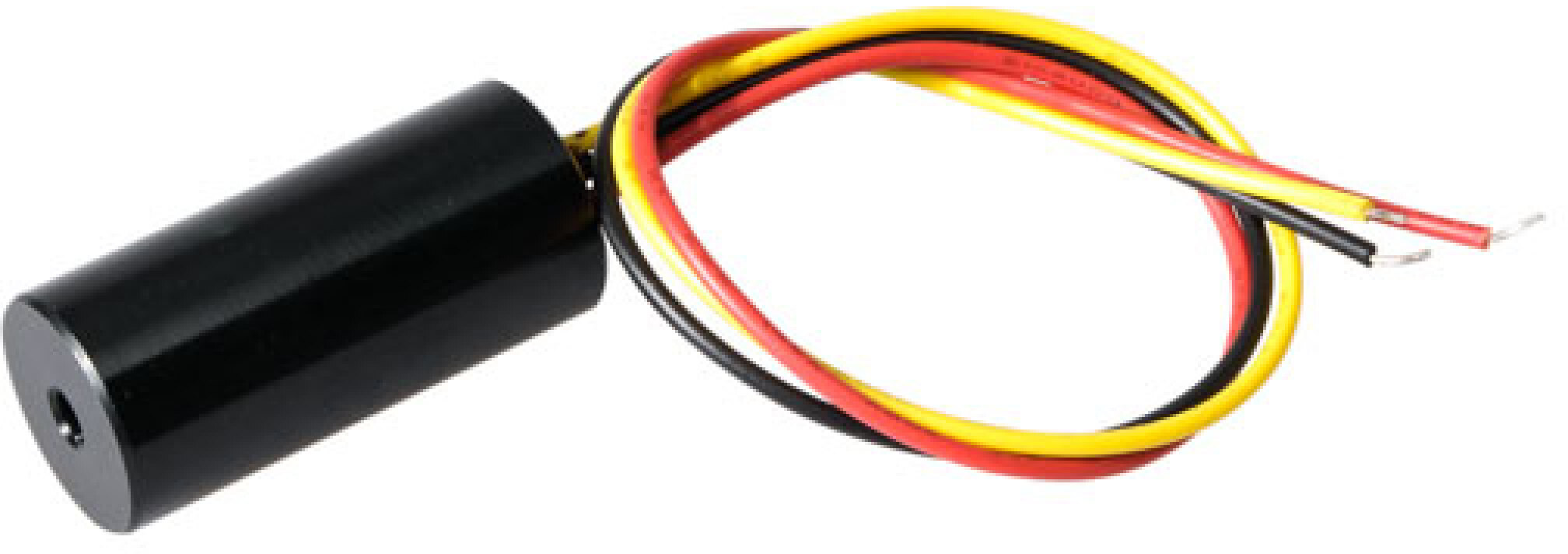

Illustration and technical drawing
Connector pin assignment
Ground: black GND
Positive: red 5V DC
Matching accessories
LFNT-5
Order no.: 70114683
Power Supply with stripped/tinned wires, Output: 5V DC, Input: 100-240V AC, 50-60Hz, Output Power: 3W max.
22.61 EUR
Downloads
Data sheet Fax order form
