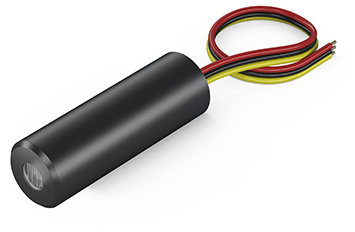

MLH650-16-5(16x45)

Order number: 70101942

Product description:
modulated isolated Line lasermodule, red, 90°, 650nm, 16mW, 5V DC, 16x45mm, class 2

• Operating Voltage 5 V DC
• Laser Class 2
• Fan angle 90 °
• uniform line thickness
• modulated

MLH650-16-5(16x45) - Zeichnung isometrisch

131,01
All prices in euros plus VAT at current rate and shipping costs.

We don't need to hide our prices!

Are you surprised that we communicate our prices so openly? Other suppliers only give you individual quotations? Our costing is also based on transparency, trust and treating all customers equally and this gives you the ability to compare!

Pcs:	10	50	100	250	500	1000
Discount:	10%	15%	20%	25%	30%	35%

Specification

Warranty	1Jahre
Beam Shape	Line
Wavelength	650nm (rot)
Optical Power	16mW
Laser Class	2
Divergence	1mrad
Fan Angle	90°
Line Thickness	<1.5mm@3m
Operating Distance	5m
Optics	Glass lens AR coated
Laser technology	Single Mode Diode
Size
Material	aluminium
Cable length	100mm
Wire type	Belden, Typ 1007, 26AWG
Focus	fixed (3000mm)
Output Aperture	5.5mm
Potential of Housing	insulated
Max. Mod. Frequency	100kHz
Lifetime	>5000h
Operating Voltage	4.5 - 5.5, typ 5V DC
Operating Current	40 - 85, typ 65mA
Housing Color	black
Operating Temperature	-20°C - 50°C
Storage Temperature	-40°C - 80°C
Weight	22g
Power Supply	Power Supply with stripped/tinned wires, Output: 5V DC, Input: 100-240V AC, 50-60Hz, Output Power: 3W max.
Stripping of wire	5mm

Illustration and technical drawing
Connector pin assignment
Ground: black GND
Positive: red 5V DC
Modulation: yellow 100kHz
