DOE227-532-5-3(16x90)-NT

Order number: 70111262

Product description:

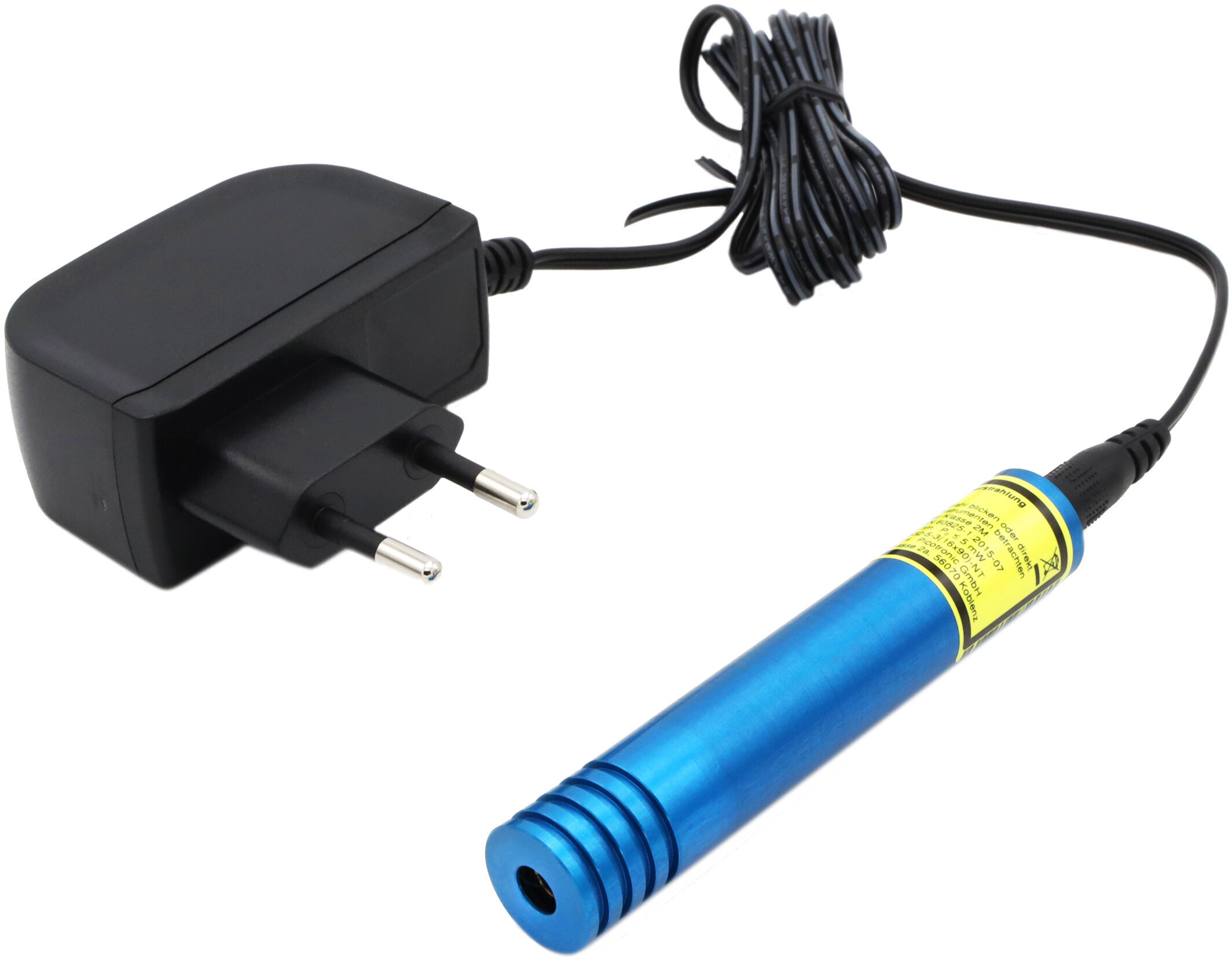

DOE Laser Module 532nm, green, 5mW, DOE Solid Line PC - 8x1,2mm 40° with power supply, 3V DC, Ø16x90mm, Laser Class 2 with DOE-DE-R227

• DOE Laser
• image processing
• Laser Class 2
• compact size

369,66
All prices in euros plus VAT at current rate and shipping costs.

We don't need to hide our prices!

Are you surprised that we communicate our prices so openly? Other suppliers only give you individual quotations? Our costing is also based on transparency, trust and treating all customers equally and this gives you the ability to compare!

Pcs:	10	50	100	250	500	1000
Discount:	10%	15%	20%	25%	30%	35%

Specification

Warranty	1Jahre
Beam Shape	DOE
Wavelength	532nm (grün)
Optical Power	5mW
Laser Class	2
Divergence	0.5mrad
Fan Angle	40°
Optics	acryl lense
Laser technology	Solid State (YVO4+KTP)
Stability	+/- 20% @ 15-30°C
Protection Lens	Ja
Size
Material	aluminium
Cable length	1360mm
Focus	fixed
Output Aperture	6mm
Potential of Housing	VDD(+)
Lifetime	>5000h
Operating Voltage	2.7 - 3.3, typ 3V DC
Operating Current	125 - 375, typ 250mA
Housing Color	cyan
Connector	2.5 mm DC plug (GND pole inner)
Operating Temperature	15°C - 30°C
Storage Temperature	-40°C - 80°C
Warm up time	<15min
Power Supply included	Ja
Weight	43g
Power Supply	Power Supply, Output: 3.3V DC, Input: 100-240V AC, 50-60Hz, Output Power: 3.3W max, Connector 2,5x5,5x9,5mm center negative
Alpha	40°
a	73mm
Diameter (without holder)	8mm
Material	PC

Illustration and technical drawing
Matching accessories
AM1-1203SZ
Order no.: 70114928
DC DC Converter IN=12V OUT=3V 1 Watt (300 mA)
16.72 EUR
