MCA520-10-5(16X60)90

Номер заказа: 70189827

Описание продукции:
Modulated, focusable, cross laser module, green, 90°, 520nm, 10mW, 5V DC, 16x60mm, Laser Class 1M, TTL modulated

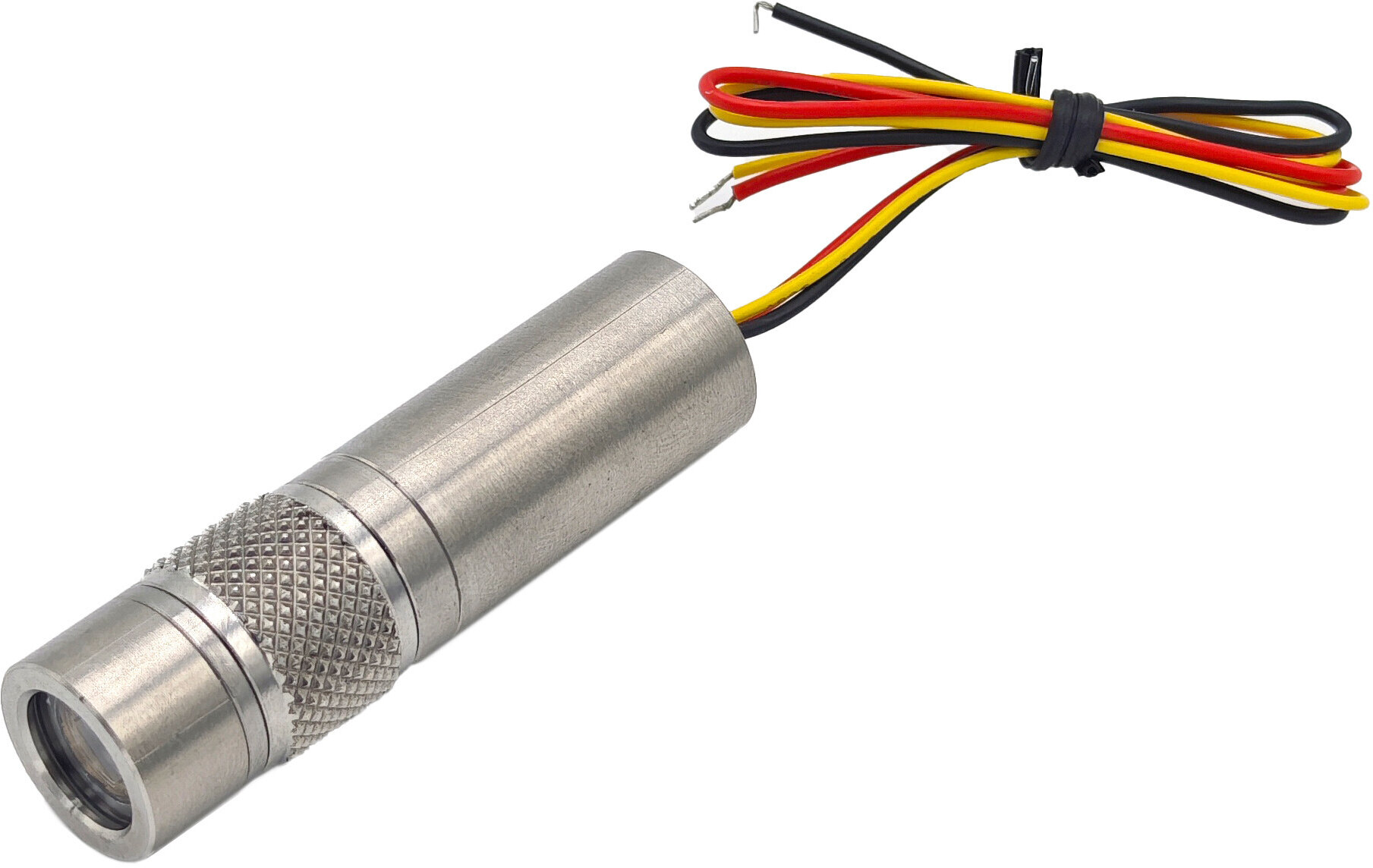

MCA520-10-5(16X60)90 - Produktbild 1
MCA520-10-5(16X60)90 - Hauptbild
Warnlabel 1M
260,42
Все цены в евро вкл.НДС и стоимость доставки.

Мы не прячем наши цены!

Вы удивлены нашей открытости в плане цен? У других производителей Вам предлагают индивидуальные предложения? Наш расчет цен базируется на прозрачности, доверии и равное отношение ко всем клиентам - и у Вас есть возможность сравнить!

Количество: 10501002505001000
Скидка: 10%15%20%25%30%35%
  • Техническая спецификация
  • Warranty1Jahre
    Beam ShapeCross
    Wavelength520nm
    (grün)
    Optical Power10mW
    Laser Class1M
    Fan Angle90°
    Line Thickness<1mm@0.3m
    Operating Distance3m
    Opticsстекляная линза с антирефлексовым покрытием
    Size
    MaterialStainless Steel
    Cable length200mm
    Wire type26AWG, 0,14mm²
    Focusрегулируемый
    Output Aperture4mm
    Lifetime>10000h
    Operating Voltage4.5 - 5.5, typ 5V DC
    Operating Current200 - 280, typ 240mA
    Housing Colorsilver
    Operating Temperature-20°C - 60°C
    Storage Temperature-40°C - 85°C
    Weight30g
    Power SupplyPower Supply with stripped/tinned wires, Output: 5V DC, Input: 100-240V AC, 50-60Hz, Output Power: 3W max.
    Stripping of cable cover5mm
  • Изображение и чертеж
  • MCA520-10-5(16X60)90 - Produktbild 1
    MCA520-10-5(16X60)90 - Hauptbild
    Warnlabel 1M
    Расположение выводов
    Вес:Cable color Ground: blackчерныйGND
    положительный:Cable color Positive: redкрасный5V DC
    Модуляция:Cable color Modulate: yellowжелтый
  • подходящие аксессуары
  • LFNT-5LFNT-5
    Номер заказа: 70114683
    Power Supply with stripped/tinned wires, Output: 5V DC, Input: 100-240V AC, 50-60Hz, Output Power: 3W max.
    22.61 EUR
