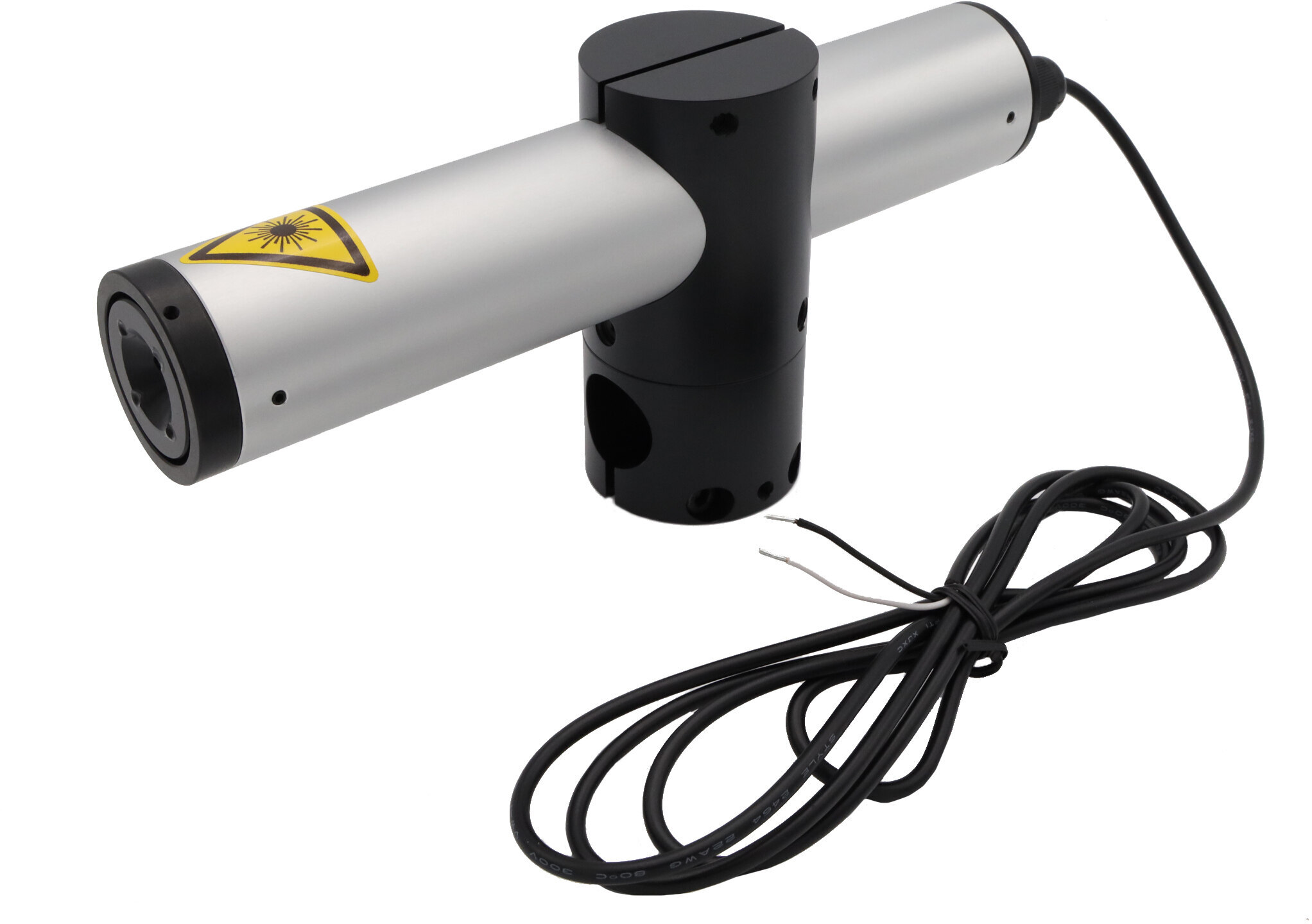

LD532-50-24(40x210)

Order number: 70115482

Product description:
isolated Line lasermodule, green, 90°, 532nm, 50mW, 24V DC, 40x210mm, class 2M, incl. Mounting

• Operating Voltage 24V DC
• Glas lenses anti reflex coated
• Laser Class 2M
• Operating Voltage 24V DC
• Uniform line thickness

Specification

Wavelength 532nm
(green)
Beam Shape Line
Optical Power 50mW
Laser Class 2M
Divergence 0.5mrad
Fan Angle 90°
Line Thickness <3mm@7m
Operating Distance 30m
Optics Glass lens AR coated
Beam Mode TEM00
Laser technology YVO4+KTP
Stability +/- 20% @ 15-30°C
Size Ø40mm 210mm
Material Aluminium
Cable length 3000mm
Wire type 18AWG, black, 3,6mm
Focus fixed
Output Aperture 8mm
Potential of Housing insulated
Lifetime >10000h
Operating Voltage 21.6 - 26.4, typ 24V DC
Operating Current 50 - 150, typ 100mA
Operating Temperature 15°C - 30°C
Storage Temperature -40°C - 80°C
Warm up time <15min
Weight 920g
customs tarif number 90132000000

Illustration and technical drawing

495.80 EURAll prices in euros plus VAT at current rate and shipping costs.

We don't need to hide our prices!

Are you surprised that we communicate our prices so openly? Other suppliers only give you individual quotations? Our costing is also based on transparency, trust and treating all customers equally and this gives you the ability to compare!

Pcs: 10501002505001000
10%15%20%25%30%35%

Matching accessories

MOUNT-BASE-PLATE-01
Order no.: 70113822
Base Plate
57.69 EUR
LFNT-24-C
Order no.: 70115055
Power Supply, Output: 24V DC, Input: 100-240V AC, 50-60Hz, Output Power: 24W max.
SYS 1308-2424-W2E | 2,1 x 5,5 x 11 center positive
22.81 EUR
LABEL-DIN-CLASS2M-DE
Order no.: 70114201
Safety Label german DIN EN 60825, Class 2M, 38x23mm, yellow, PET
0.44 EUR
LABEL-DIN-CLASS2M-EN
Order no.: 70119596
Safety Label english DIN EN 60825, Class 2M, 38x23mm, yellow, PET
0.44 EUR
