LC520-16-3-F(14x55)30-QCW

Order number: 70125023

Product description:
focusable isolated Line lasermodule, green, 30°, 520nm, 16mW, 3V DC, 14x55mm, class 2M, internal modulation 1kHz

• Operating Voltage 3 V DC
• Laser Class 2M
• adjustable focus
• low power consumption
• compact size
LC520-16-3-F(14x55)30-QCW - Hauptbild
LC520-16-3-F(14x55)30-QCW - Rendergrafik
LC520-16-3-F(14x55)30-QCW - Zeichnung
LC520-16-3-F(14x55)30-QCW - Zeichnung Front
LC520-16-3-F(14x55)30-QCW - Zeichnung isometrisch
Warnlabel 2M
378,07
All prices in euros plus VAT at current rate and shipping costs.

We don't need to hide our prices!

Are you surprised that we communicate our prices so openly? Other suppliers only give you individual quotations? Our costing is also based on transparency, trust and treating all customers equally and this gives you the ability to compare!

Pcs: 10501002505001000
Discount: 10%15%20%25%30%35%
  • Specification
  • Warranty1Jahre
    Beam ShapeLine
    Wavelength520nm
    (grün)
    Optical Power16mW
    Laser Class2M
    Divergence0.4mrad
    Fan Angle30°
    Line Thicknessadjustable
    Operating Distance8m
    OpticsGlass lens AR coated
    Laser technologySingle Mode Diode
    SizeØ14mm 55mm
    Materialaluminium
    Cable length100mm
    Wire type26AWG, 0,14mm²
    Focusadjustable
    Output Aperture4mm
    Potential of Housinginsulated
    Lifetime>5000h
    Operating Voltage2.7 - 3.3, typ 3V DC
    Operating Current25 - 70, typ 40mA
    Housing Colorblack
    Operating Temperature-10°C - 60°C
    Storage Temperature-40°C - 80°C
    Weight20g
    Power SupplyPower Supply with stripped/tinned wires, Output: 3.3V DC, Input: 100-240V AC, 50-60Hz, Output Power: 3.3W max.
    internal modulation frequency1kHz
    Stripping of wire5mm
  • Illustration and technical drawing
  • LC520-16-3-F(14x55)30-QCW - Hauptbild
    LC520-16-3-F(14x55)30-QCW - Rendergrafik

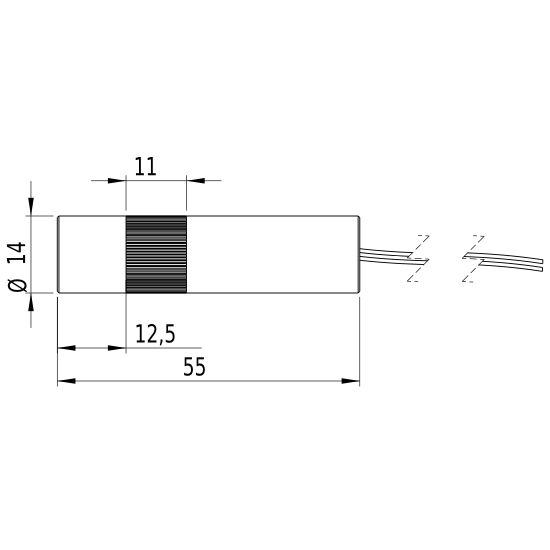

    LC520-16-3-F(14x55)30-QCW - Zeichnung

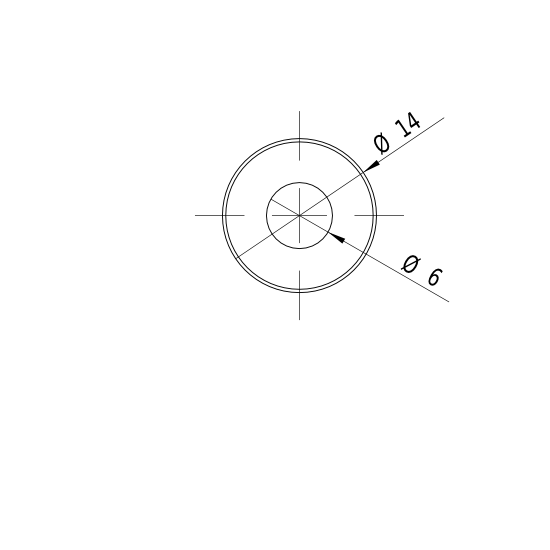

    LC520-16-3-F(14x55)30-QCW - Zeichnung Front

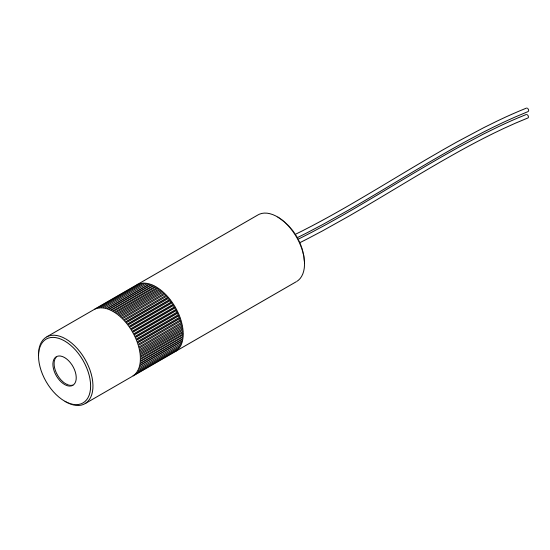

    LC520-16-3-F(14x55)30-QCW - Zeichnung isometrisch
    Warnlabel 2M
    Connector pin assignment
    Ground:Cable color Ground: blackblackGND
    Positive:Cable color Positive: redred3V DC
  • Matching accessories
  • MULTI-MOUNT-14(45x75)MULTI-MOUNT-14(45x75)
    Order no.: 70114096
    Mount for Lasermodul 14mm, Diameter 45mm, Height 75mm
    66.30 EUR
