LASERTIGER-ORIGINAL
Order number: 70133257
Product description:

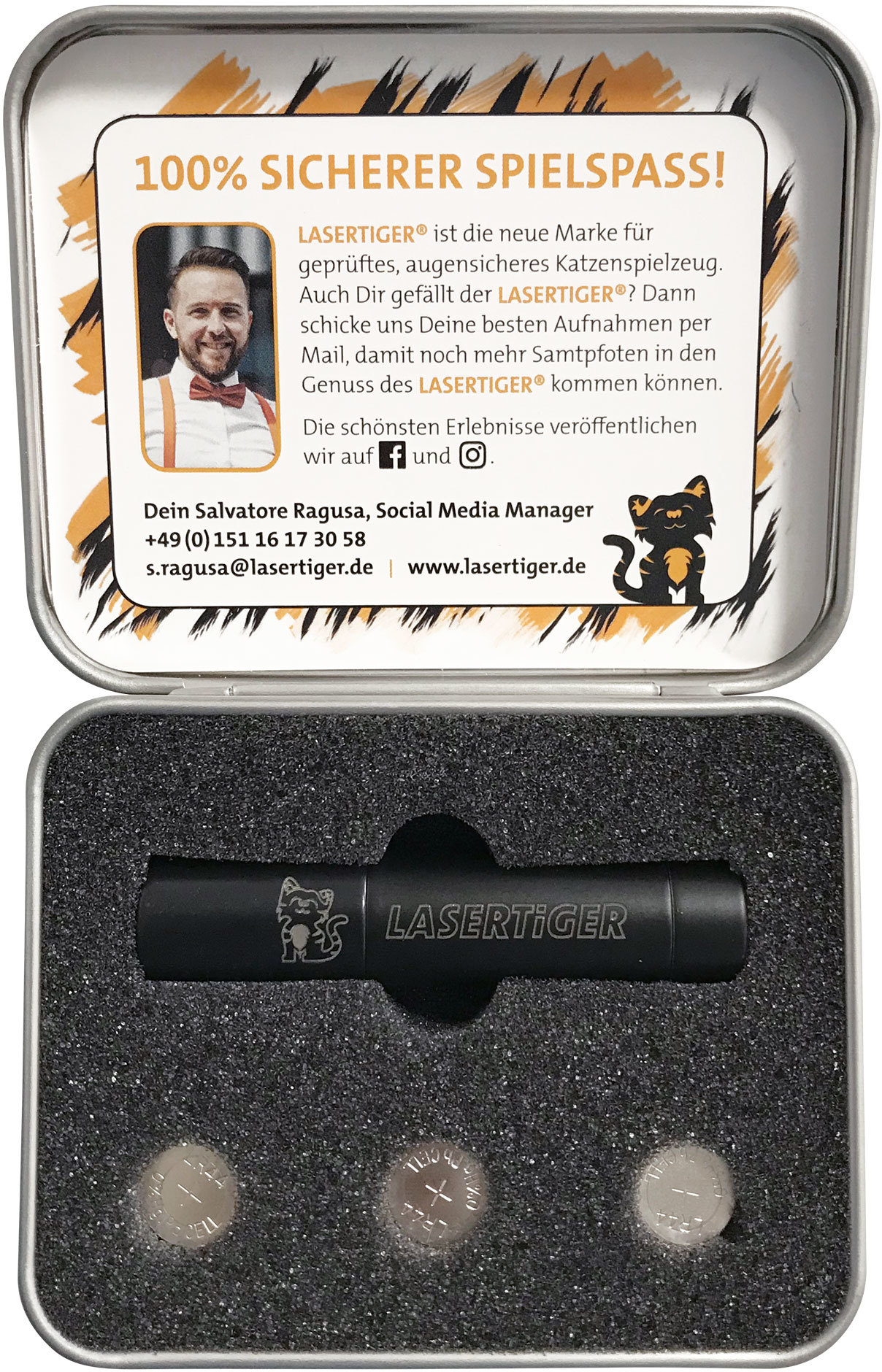

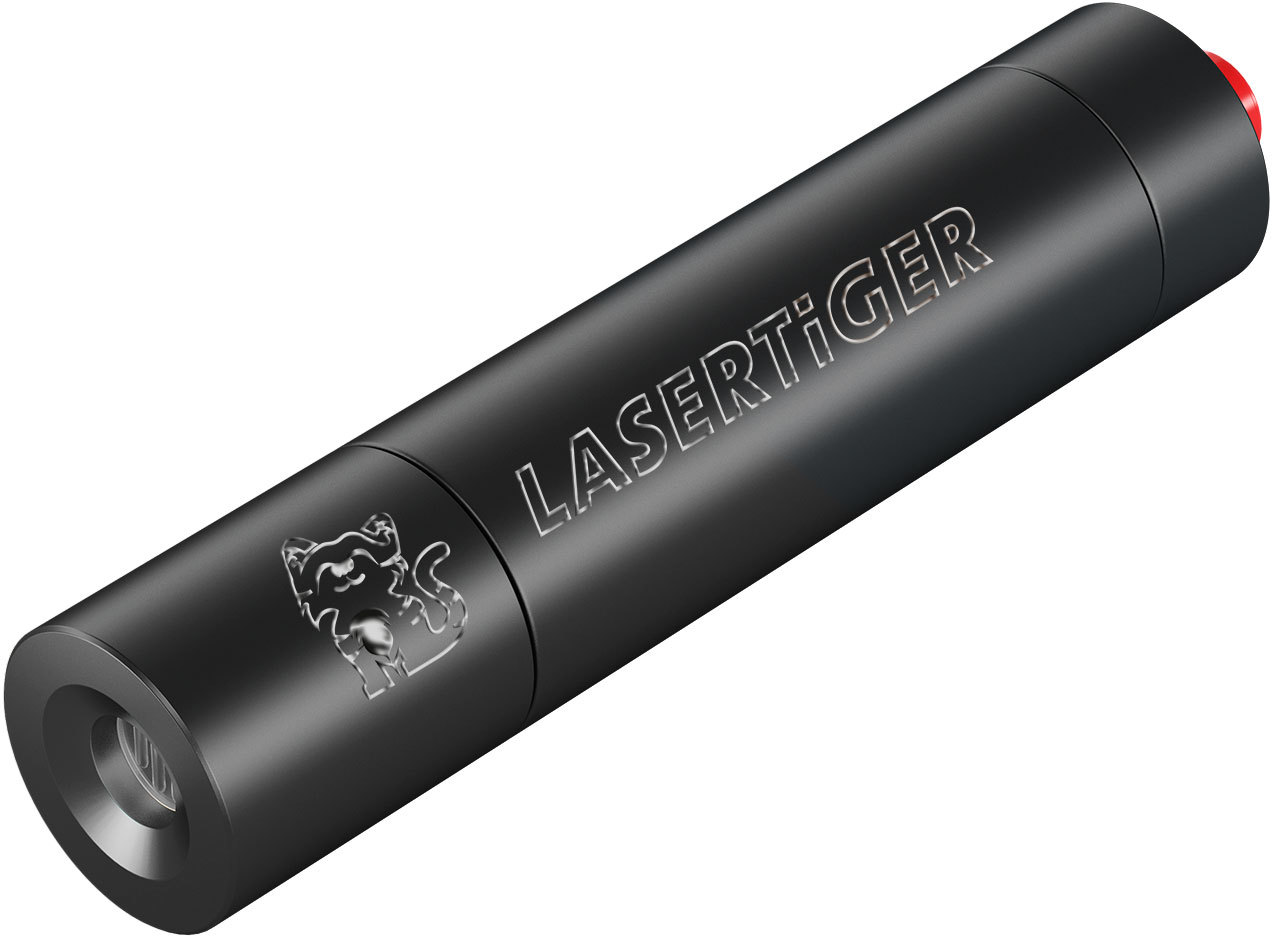

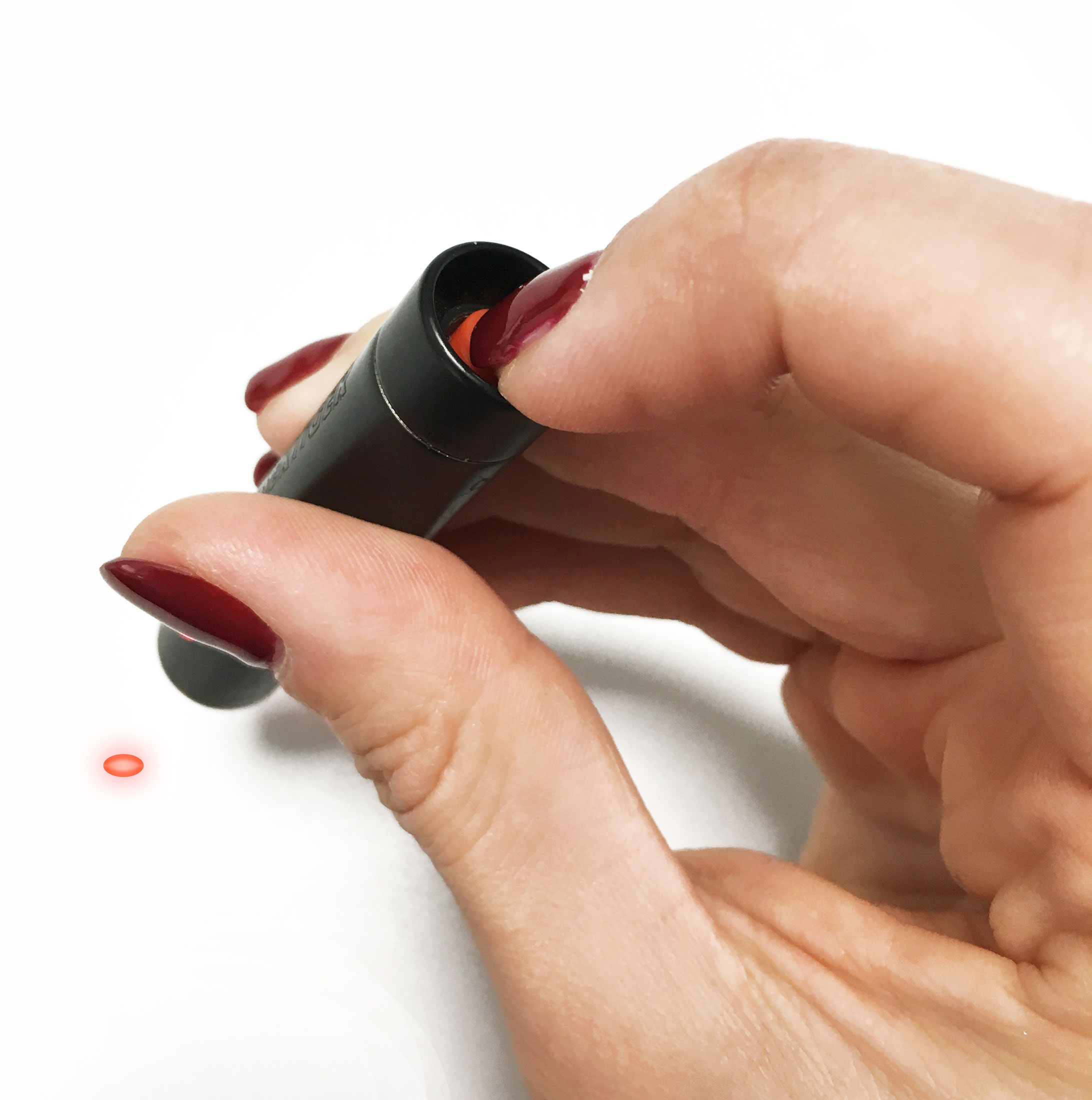

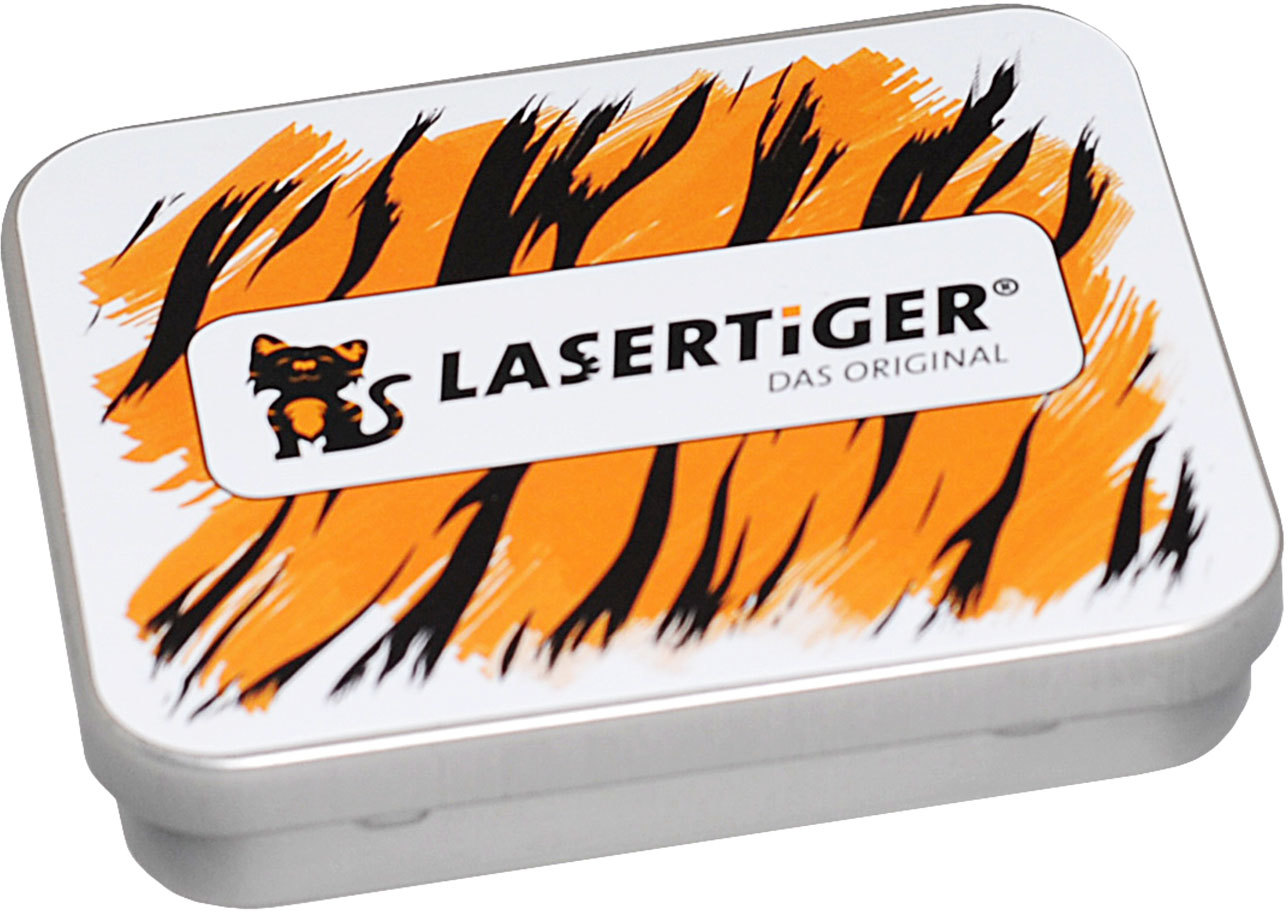

LASERTIGER® interactive and eye-safe cat toy for playing, with practical metalcase, spare batteries, and gift box
• Laser class 1
• eye safe for cats
• red laser 650 nm
• low laser power
• 2x battery pack LR44
Product description:
LASERTIGER® interactive and eye-safe cat toy for playing, with practical metalcase, spare batteries, and gift box
• Laser class 1
• eye safe for cats
• red laser 650 nm
• low laser power
• 2x battery pack LR44

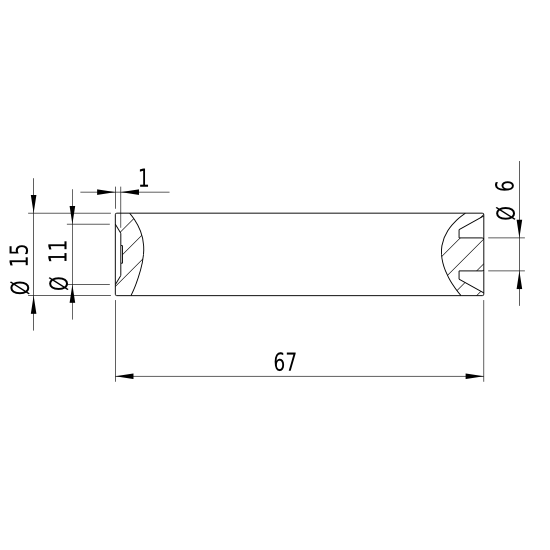

.png "LASERTIGER-ORIGINAL - Zeichnung")

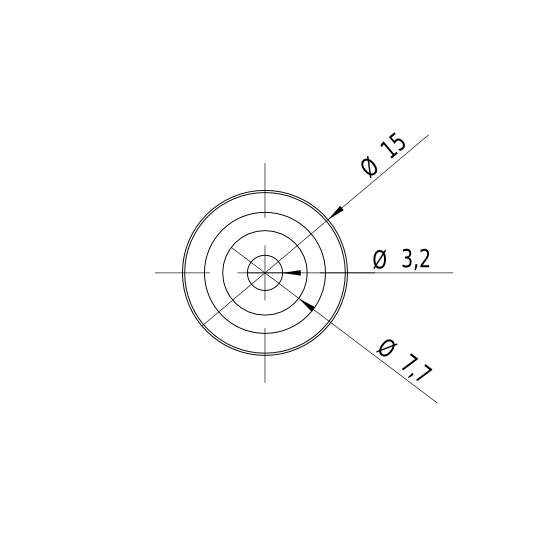

.png "LASERTIGER-ORIGINAL - Zeichnung Front")

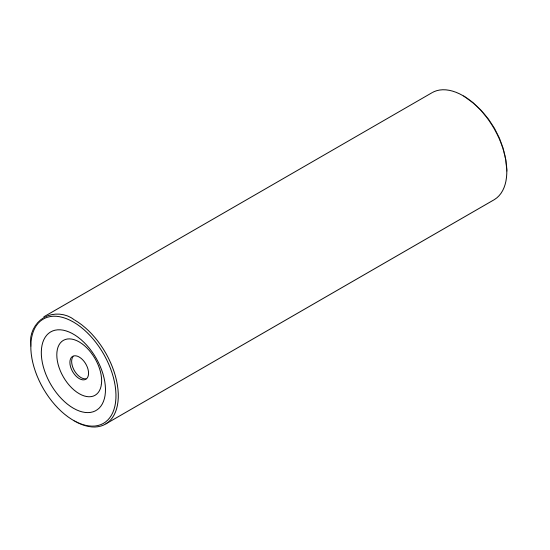

.png "LASERTIGER-ORIGINAL - Zeichnung isometrisch")
We don't need to hide our prices!
Are you surprised that we communicate our prices so openly? Other suppliers only give you individual quotations? Our costing is also based on transparency, trust and treating all customers equally and this gives you the ability to compare!
| Pcs: | 10 | 50 | 100 | 250 | 500 | 1000 |
| Discount: | 10% | 15% | 20% | 25% | 30% | 35% |
- Specification
Warranty 1Jahre Beam Shape Dot Wavelength 650nm
(rot)Optical Power 0.3mW Laser Class 1 Divergence 1mrad Beam Diameter 3mm Size of Laserdot <4..6mm@5m Operating Distance 5m Optics acryl lense Laser technology Single Mode Diode Size Ø15mm 68mm Material aluminium Focus fixed (5.0m) Output Aperture 3mm Potential of Housing VDD(+) Lifetime >3000h Operating Voltage 3 - 4.5, typ 3V DC Operating Current 10 - 25, typ 15mA Battery LR44/AG13 alkaline battery, 1.5V Housing Color black Operating Temperature -20°C - 40°C Storage Temperature -40°C - 80°C Weight 27g - Illustration and technical drawing
- Matching accessories
MULTI-MOUNT-15(45x75)
Order no.: 70114102
Mount for Lasermodul 15mm, Diameter 45mm, Height 75mm
61.26 EUR- Downloads
