DC850-0.4-6(10x27)

Order number: 70102680

Product description:
Focusable isolated Dot lasermodule, infrared, 850nm, 0.4mW, 6V DC, 10x27mm, class 1

• Low power consumption
• Image processing
• Compact size
• Laser Class 1
• Operating Voltage 6V DC

Specification

Wavelength 850nm
(infrared)
Beam Shape Dot
Optical Power 0.4mW
Laser Class 1
Divergence 0.4mrad
Size of Laserdot adjustable
Operating Distance 50m
Optics Glass lens AR coated
Laser technology Single Mode Diode
Size Ø10mm 27mm
Material Stainless Steel
Cable length 100mm
Wire type 26AWG, 0,14mm²
Focus adjustable
Output Aperture 4mm
Potential of Housing insulated
Lifetime >5000h
Operating Voltage 5.4 - 6.6, typ 6V DC
Operating Current 5 - 20, typ 12mA
Housing Color silver
Operating Temperature -20°C - 50°C
Storage Temperature -40°C - 80°C
Weight 10g
customs tarif number 90132000000
Stripping of wire 5mm

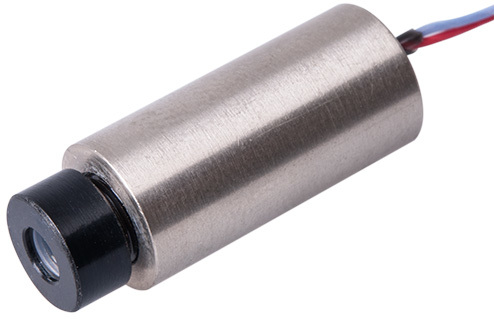

Illustration and technical drawing

Connector pin assignment
Ground:Cable color Ground: blueblueGND
Positive:Cable color Positive: redred6V DC
57.31 EURAll prices in euros plus VAT at current rate and shipping costs.
